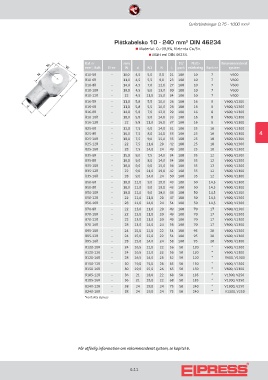

Cu-förbindningar 0,75 - 1000 mm²

Plåtkabelsko 10 - 240 mm² DIN 46234
„ Material: Cu 99,9%, förtenta Cu/Sn.
„ Mått enl DIN 46234.

Kat nr mm St/ Platt- Rekommenderat
mm², Bult El-nr W d N1 N L pack märkning Back nr system
B10-5R - 10,0 4,5 5,0 8,0 21 100 10 7 V600
B10-6R - 11,0 4,5 5,5 9,0 23 100 10 7 V600
B10-8R - 14,0 4,5 7,0 12,0 27 100 10 7 V600
B10-10R - 18,0 4,5 9,0 13,0 30 100 10 7 V600
B10-12R - 22 4,5 11,0 15,0 34 100 10 7 V600
B16-5R - 11,0 5,8 5,5 10,0 26 100 16 8 V600, V1300
B16-6R - 11,0 5,8 5,5 10,0 26 100 16 8 V600, V1300
B16-8R - 14,0 5,8 7,0 12,0 29 100 16 8 V600, V1300
B16-10R - 18,0 5,8 9,0 14,0 33 100 16 8 V600, V1300
B16-12R - 22 5,8 11,0 16,0 37 100 16 8 V600, V1300
B25-6R - 12,0 7,5 6,0 14,0 31 100 25 10 V600, V1300
B25-8R - 16,0 7,5 8,0 14,0 33 100 25 10 V600, V1300 4
B25-10R - 18,0 7,5 9,0 15,0 35 100 25 10 V600, V1300
B25-12R - 22 7,5 11,0 20 42 100 25 10 V600, V1300
B25-16R - 28 7,5 14,0 24 49 100 25 10 V600, V1300
B35-6R - 15,0 9,0 7,5 14,0 34 100 35 12 V600, V1300
B35-8R - 16,0 9,0 8,0 14,0 34 100 35 12 V600, V1300
B35-10R - 18,0 9,0 9,0 15,0 36 100 35 12 V600, V1300
B35-12R - 22 9,0 11,0 19,0 42 100 35 12 V600, V1300
B35-16R - 28 9,0 14,0 24 50 100 35 12 V600, V1300
B50-6R - 18,0 11,0 9,0 18,0 43 100 50 14,5 V600, V1300
B50-8R - 18,0 11,0 9,0 18,0 43 100 50 14,5 V600, V1300
B50-10R - 18,0 11,0 9,0 18,0 43 100 50 14,5 V600, V1300
B50-12R - 22 11,0 11,0 20 47 100 50 14,5 V600, V1300
B50-16R - 28 11,0 14,0 24 54 100 50 14,5 V600, V1300
B70-8R - 22 13,0 11,0 20 49 100 70 17 V600, V1300
B70-10R - 22 13,0 11,0 20 49 100 70 17 V600, V1300
B70-12R - 22 13,0 11,0 20 49 100 70 17 V600, V1300
B70-16R - 28 13,0 14,0 24 56 100 70 17 V600, V1300
B95-10R - 24 15,0 12,0 22 54 100 95 20 V600, V1300
B95-12R - 24 15,0 12,0 22 54 100 95 20 V600, V1300
B95-16R - 28 15,0 14,0 24 58 100 95 20 V600, V1300
B120-10R - 24 16,5 12,0 22 56 50 120 * V600, V1300
B120-12R - 24 16,5 12,0 22 56 50 120 * V600, V1300
B120-16R - 28 16,5 14,0 26 62 50 120 * V600, V1300
B150-12R - 30 19,0 15,0 26 65 50 150 * V600, V1300
B150-16R - 30 19,0 15,0 26 65 50 150 * V600, V1300
B185-12R - 36 21 18,0 22 68 50 185 * V1300, V250
B185-16R - 36 21 18,0 22 68 50 185 * V1300, V250
B240-12R - 38 24 19,0 24 75 50 240 * V1300, V250
B240-16R - 38 24 19,0 24 75 50 240 * V1300, V250
*kontakta Elpress

För utförlig information om rekommenderat system, se kapitel 6.

4:11
