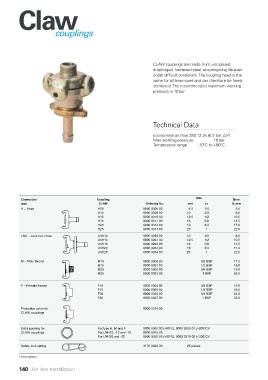

Claw

couplings

CLAW couplings are made from zinc-plated,
dropforged, hardened steel, ensuring long life even
under difficult conditions. The coupling head is the
same for all hose sizes and can therefore be freely
combined. The recommended maximum working
pressure is 10 bar.

Technical Data

Economical air flow 280 12 l/s (0.2 bar P)
Max working pressure 16 bar
Temperature range -10ºC to +80ºC

Connection Coupling Size Bore
type CLAW Ordering No. mm in B, mm
H – Hose H06 9000 0308 00 6.3 1/4 5.0
H10 9000 0309 00 10 3/8 8.0
H13 9000 0310 00 12.5 1/2 10.5
H16 9000 0311 00 16 5/8 13.5
H20 9000 0312 00 19 3/4 17.0
H25 9000 0313 00 25 1 22.0
LNH – Lock nut, Hose LNH10 9000 0260 00 10 3/8 8.0
LNH13 9000 0261 00 12.5 1/2 10.5
LNH16 9000 0262 00 16 5/8 13.5
LNH20 9000 0263 00 19 3/4 17.2
LNH25 9000 0264 00 25 1 22.0

M – Male thread M10 9000 0300 00 3/8 BSP 11.2
M15 9000 0301 00 1/2 BSP 14.8
M20 9000 0302 00 3/4 BSP 19.0
M25 9000 0303 00 1 BSP 25.5

F – Female thread F10 9000 0304 00 3/8 BSP 15.0
F15 9000 0305 00 1/2 BSP 18.6
F20 9000 0306 00 3/4 BSP 24.0
F25 9000 0307 00 1 BSP 25.0

Protection cover for 9000 0314 00
CLAW couplings

o
o
Extra packing for For type H, M and F 9000 0000 00 (+80 C), 9000 0000 01 (+200 C) a
CLAW couplings For LNH10, -13 and -16 9000 0015 00
o
For LNH20 and -25 9000 0268 00 (+80 C), 9000 0319 00 (+200 C) a
o
Safety lock spring 3176 8640 90 25 pieces
a Viton-green.

140 Air line installation
