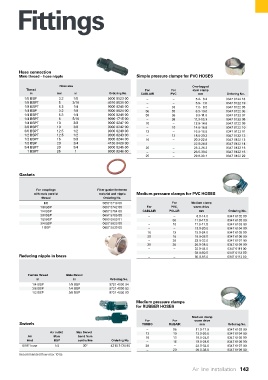

Page 143 - ingenioren

Swivel Fittings

Hose connection
Male thread – hose nipple Simple pressure clamps for PVC HOSES

Hose size One-lugged
Thread For For steel clamp
in mm in Ordering No. CABLAIR PVC mm Ordering No.
1/8 BSP 3.2 1/8 9000 0523 00 – – 5.2- 6.2 0347 0122 18
1/8 BSPT 5 3/16 4010 0031 00 – – 5.9- 7.0 0347 0122 19
1/8 BSPT 6.3 1/4 9000 0240 00 – 03 7.0- 8.5 0347 0122 05
1/4 BSP 3.2 1/8 9000 0524 00 06 05 8.5-10.0 0347 0122 06
1/4 BSPT 6.3 1/4 9000 0241 00 08 06 9.8-11.8 0347 0122 07
1/4 BSPT 8 5/16 9090 1715 00 – 08 11.3-13.3 0347 0122 08
1/4 BSPT 10 3/8 9000 0247 00 10 – 12.8-14.8 0347 0122 09
3/8 BSPT 10 3/8 9000 0242 00 – 10 14.6-16.8 0347 0122 10
3/8 BSPT 12.5 1/2 9000 0248 00 13 – 16.5-18.8 0347 0122 11
1/2 BSPT 12.5 1/2 9000 0243 00 – 13 18.0-20.3 0347 0122 12
1/2 BSPT 16 5/8 9000 0244 00 16 – 20.2-22.8 0347 0122 13
1/2 BSP 20 3/4 4150 0429 00 – – 22.0-24.8 0347 0122 14
3/4 BSPT 20 3/4 9000 0245 00 20 – 23.3-26.3 0347 0122 15
1 BSPT 25 1 9000 0246 00 – – 26.5-30.0 0347 0122 16
25 – 29.8-33.1 0347 0122 22

Gaskets

For couplings Fiber gasket between
with male parallel material and nipple Medium pressure clamps for PVC HOSES
thread Ordering No.
M5 0657 5710 00 For Medium clamp
1/8 BSP 0657 5742 00 For PVC, worm drive
1/4 BSP 0657 5764 00 CABLAIR POLUR mm Ordering No.
3/8 BSP 0657 5785 00 – – 8.0-14.0 0347 6102 00
1/2 BSP 0653 0500 01 – 08 11.0-17.0 0347 6103 00
3/4 BSP 0657 5823 00 – 10 11.0-17.0 0347 6103 00
1 BSP 0657 5830 00 – – 13.0-20.0 0347 6104 00
16 13 15.0-24.0 0347 6105 00
20 16 19.0-28.0 0347 6106 00
– 20 22.0-32.0 0347 6107 00
25 25 26.0-38.0 0347 6109 00
– – 32.0-44.0 0347 6111 00
– – 38.0-50.0 0347 6112 00
Reducing nipple in brass – – 50.0-65.0 0347 6113 00

Female thread Male thread
in in Ordering No.
1/4 BSP 1/8 BSP 9721 4000 94
3/8 BSP 1/4 BSP 9721 4000 92
1/2 BSP 3/8 BSP 9721 4000 93

Medium pressure clamps
for RUBBER HOSES

Medium clamp
For For worm drive
Swivels TURBO RUBAIR mm Ordering No.
– 06 11.0-17.0 0347 6103 00
Air outlet Max Swivel 13 10 13.0-20.0 0347 6104 00
Air Male bend from 16 13 15.0-24.0 0347 6105 00
inlet BSP centre line Ordering No. – 16 19.0-28.0 0347 6106 00
5/16" hose 1/4 30° 4210 3134 80 20 – 22.0-32.0 0347 6107 00
– 20 26.0-38.0 0347 6109 00
Recommended flow max 10 l/s

Air line installation 143
