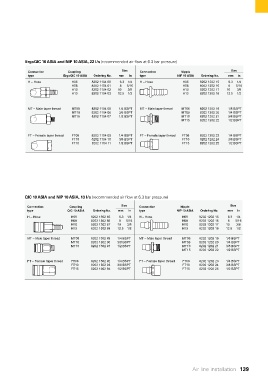

ErgoQIC 10 ASIA and NIP 10 ASIA, 22 l/s (recommended air flow at 6.3 bar pressure)

Connection Coupling Size Connection Nipple Size
type ErgoQIC 10 ASIA Ordering No. mm in type NIP 10 ASIA Ordering No. mm in
H – Hose H06 8202 1104 00 6.3 1/4 H – Hose H06 8202 1202 15 6.3 1/4
H08 8202 1104 01 8 5/16 H08 8202 1202 16 8 5/16
H10 8202 1104 02 10 3/8 H10 8202 1202 17 10 3/8
H13 8202 1104 03 12.5 1/2 H13 8202 1202 18 12.5 1/2

MT – Male taper thread MT08 8202 1104 05 1/4 BSPT MT – Male taper thread MT06 8202 1202 19 1/8 BSPT
MT10 8202 1104 06 3/8 BSPT MT08 8202 1202 20 1/4 BSPT
MT15 8202 1104 07 1/2 BSPT MT10 8202 1202 21 3/8 BSPT
MT15 8202 1202 22 1/2 BSPT

FT – Female taper thread FT08 8202 1104 09 1/4 BSPT FT – Female taper thread FT08 8202 1202 23 1/4 BSPT
FT10 8202 1104 10 3/8 BSPT FT10 8202 1202 24 3/8 BSPT
FT15 8202 1104 11 1/2 BSPT FT15 8202 1202 25 1/2 BSPT

QIC 10 ASIA and NIP 10 ASIA, 13 l/s (recommended air flow at 6.3 bar pressure)

Connection Coupling Size Connection Nipple Size
type QIC 10 ASIA Ordering No. mm in type NIP 10 ASIA Ordering No. mm in
H – Hose H06 8202 1302 85 6.3 1/4 H – Hose H06 8202 1202 15 6.3 1/4
H08 8202 1302 86 8 5/16 H08 8202 1202 16 8 5/16
H10 8202 1302 87 10 3/8 H10 8202 1202 17 10 3/8
H13 8202 1302 88 12.5 1/2 H13 8202 1202 18 12.5 1/2
MT – Male taper thread MT08 8202 1302 89 1/4 BSPT MT – Male taper thread MT06 8202 1202 19 1/8 BSPT
MT10 8202 1302 90 3/8 BSPT MT08 8202 1202 20 1/4 BSPT
MT15 8202 1302 91 1/2 BSPT MT10 8202 1202 21 3/8 BSPT
MT15 8202 1202 22 1/2 BSPT

FT – Female taper thread FT08 8202 1302 92 1/4 BSPT FT – Female taper thread FT08 8202 1202 23 1/4 BSPT
FT10 8202 1302 93 3/8 BSPT FT10 8202 1202 24 3/8 BSPT
FT15 8202 1302 94 1/2 BSPT FT15 8202 1202 25 1/2 BSPT

Air line installation 139
