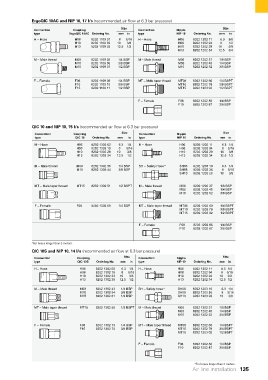

ErgoQIC 10AC and NIP 10, 17 l/s (recommended air flow at 6.3 bar pressure)

Connection Coupling Size Connection Nipple Size
type ErgoQIC 10AC Ordering No. mm in type NIP 10 Ordering No. mm in
H – Hose H08 8202 1109 01 8 5/16 H – Hose H06 8202 1202 11 6.3 3/8
H10 8202 1109 02 10 3/8 H08 8202 1202 94 8 1/2
H13 8202 1109 03 12.5 1/2 H10 8202 1202 29 10 5/8
H13 8202 1202 34 12.5 3/4

M – Male thread M08 8202 1109 05 1/4 BSP M – Male thread M06 8202 1202 37 1/8 BSP
M10 8202 1109 06 3/8 BSP M08 8202 1202 45 1/4 BSP
M15 8202 1109 07 1/2 BSP M10 8202 1202 52 3/8 BSP

F – Female F08 8202 1109 09 1/4 BSP MT – Male taper thread MT08 8202 1202 60 1/4 BSPT
F10 8202 1109 10 3/8 BSP MT10 8202 1202 78 3/8 BSPT
F15 8202 1109 11 1/2 BSP MT15 8202 1203 02 1/2 BSPT

F – Female F08 8202 1202 86 1/4 BSP
F10 8202 1202 87 3/8 BSP

QIC 10 and NIP 10, 15 l/s (recommended air flow at 6.3 bar pressure)
Connection Coupling Size Connection Nipple Size
type QIC 10 Ordering No. mm in type NIP 10 Ordering No. mm in
H – Hose H06 8202 1302 02 6.3 1/4 H – Hose H06 8202 1202 11 6.3 1/4
H08 8202 1302 10 8 5/16 H08 8202 1202 94 8 5/16
H10 8202 1302 28 10 3/8 H10 8202 1202 29 10 3/8
H13 8202 1302 34 12.5 1/2 H13 8202 1202 34 12.5 1/2
M – Male thread M08 8202 1302 36 1/4 BSP SH – Safety Hose SH06 8202 1203 10 6.3 1/4
a
M10 8202 1302 44 3/8 BSP SH08 8202 1203 36 8 5/16
SH10 8202 1203 28 10 3/8

MT – Male taper thread MT15 8202 1302 51 1/2 BSPT M – Male thread M06 8202 1202 37 1/8 BSP
M08 8202 1202 45 1/4 BSP
M10 8202 1202 52 3/8 BSP

F – Female F08 8202 1302 69 1/4 BSP MT – Male taper thread MT08 8202 1202 60 1/4 BSPT
MT10 8202 1202 78 3/8 BSPT
MT15 8202 1203 02 1/2 BSPT

F – Female F08 8202 1202 86 1/4 BSP
F10 8202 1202 87 3/8 BSP

a For hoses longer than 3 meters.
QIC 10S and NIP 10, 14 l/s (recommended air flow at 6.3 bar pressure)
Connection Coupling Size Connection Nipple Size
type QIC 10S Ordering No. mm in type NIP 10 Ordering No. mm in
H – Hose H06 8202 1302 08 6.3 1/4 H – Hose H06 8202 1202 11 6.3 1/4
H08 8202 1302 18 8 5/16 H08 8202 1202 94 8 5/16
H10 8202 1302 33 10 3/8 H10 8202 1202 29 10 3/8
H13 8202 1302 39 12.5 1/2 H13 8202 1202 34 12.5 1/2
M – Male thread M08 8202 1302 43 1/4 BSP SH – Safety hose SH06 8202 1203 10 6.3 1/4
a
M10 8202 1302 54 3/8 BSP SH08 8202 1203 36 8 5/16
M15 8202 1302 81 1/2 BSP SH10 8202 1203 28 10 3/8

MT – Male taper thread MT15 8202 1302 58 1/2 BSPT M – Male thread M06 8202 1202 37 1/8 BSP
M08 8202 1202 45 1/4 BSP
M10 8202 1202 52 3/8 BSP

F – Female F08 8202 1302 73 1/4 BSP MT – Male taper thread MT08 8202 1202 60 1/4 BSPT
F10 8202 1302 74 3/8 BSP MT10 8202 1202 78 3/8 BSPT
MT15 8202 1203 02 1/2 BSPT

F – Female F08 8202 1202 86 1/4 BSP
F10 8202 1202 87 3/8 BSP

a For hoses longer than 3 meters.
Air line installation 135
