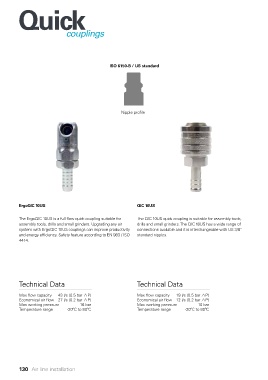

Quick

Couplings
couplings

ISO 6150-B / US standard

Nipple profile

ErgoQIC 10US QIC 10US

The ErgoQIC 10US is a full flow quick coupling suitable for The QIC 10US quick coupling is suitable for assembly tools,
assembly tools, drills and small grinders. Upgrading any air drills and small grinders. The QIC 10US has a wide range of
system with ErgoQIC 10US couplings can improve productivity connections available and it is interchangeable with US 3/8”
and energy efficiency. Safety feature according to EN 983 / ISO standard nipples.
4414.

Technical Data Technical Data

Max flow capacity 43 l/s (0.5 bar P) Max flow capacity 19 l/s (0.5 bar P)
Economical air flow 27 l/s (0.2 bar P) Economical air flow 12 l/s (0.2 bar P)
Max working pressure 16 bar Max working pressure 10 bar
Temperature range -20ºC to 80ºC Temperature range -20ºC to 80ºC

130 Air line installation
