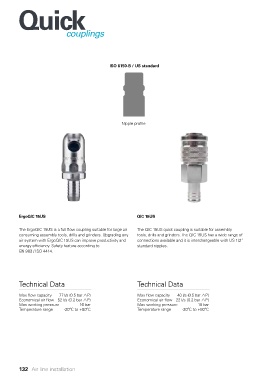

Page 132 - ingenioren

Quick

Couplings
couplings

ISO 6150-B / US standard

Nipple profile

ErgoQIC 15US QIC 15US

The ErgoQIC 15US is a full flow coupling suitable for large air The QIC 15US quick coupling is suitable for assembly
consuming assembly tools, drills and grinders. Upgrading any tools, drills and grinders. The QIC 15US has a wide range of
air system with ErgoQIC 15US can improve productivity and connections available and it is interchangeable with US 1/2”
energy efficiency. Safety feature according to standard nipples.
EN 983 / ISO 4414.

Technical Data Technical Data

Max flow capacity 77 l/s (0.5 bar P) Max flow capacity 40 l/s (0.5 bar P)
Economical air flow 52 l/s (0.2 bar P) Economical air flow 22 l/s (0.2 bar P)
Max working pressure 16 bar Max working pressure 10 bar
Temperature range -20ºC to +80ºC Temperature range -20ºC to +80ºC

132 Air line installation
