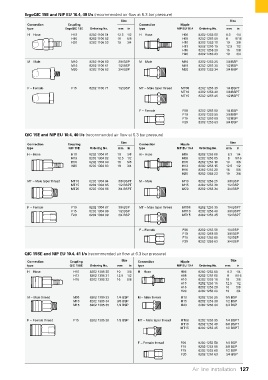

ErgoQIC 15E and NIP EU 10.4, 49 l/s (recommended air flow at 6.3 bar pressure)
Size Size
Connection Coupling Connection Nipple
type ErgoQIC 15E Ordering No. mm in type NIP EU 10.4 Ordering No. mm in
H – Hose H13 8202 1106 51 12.5 1/2 H – Hose H06 8202 1253 00 6.3 1/4
H16 8202 1106 52 16 5/8 H08 8202 1253 05 8 5/16
H20 8202 1106 53 19 3/4 H10 8202 1253 10 10 3/8
H13 8202 1253 15 12.5 1/2
H16 8202 1253 20 16 5/8
H20 8202 1253 23 19 3/4
M – Male M10 8202 1106 60 3/8 BSP M – Male M10 8202 1253 25 3/8 BSP
M15 8202 1106 61 1/2 BSP M15 8202 1253 30 1/2 BSP
M20 8202 1106 62 3/4 BSP M20 8202 1253 34 3/4 BSP

F – Female F15 8202 1106 71 1/2 BSP MT – Male taper thread MT08 8202 1253 35 1/4 BSPT
MT10 8202 1253 40 3/8 BSPT
MT15 8202 1253 45 1/2 BSPT

F – Female F08 8202 1253 50 1/4 BSP
F10 8202 1253 55 3/8 BSP
F15 8202 1253 60 1/2 BSP
F20 8202 1253 63 3/4 BSP

QIC 15E and NIP EU 10.4, 40 l/s (recommended air flow at 6.3 bar pressure)
Size Size
Connection Coupling Connection Nipple
type QIC 15E Ordering No. mm in type NIP EU 10.4 Ordering No. mm in
H – Hose H10 8202 1304 81 10 3/8 H – Hose H06 8202 1253 00 6.3 1/4
H13 8202 1304 82 12.5 1/2 H08 8202 1253 05 8 5/16
H16 8202 1304 90 16 5/8 H10 8202 1253 10 10 3/8
H20 8202 1304 83 19 3/4 H13 8202 1253 15 12.5 1/2
H16 8202 1253 20 16 5/8
H20 8202 1253 23 19 3/4
MT – Male taper thread MT10 8202 1304 84 3/8 BSPT M – Male M10 8202 1253 25 3/8 BSP
MT15 8202 1304 85 1/2 BSPT M15 8202 1253 30 1/2 BSP
MT20 8202 1304 86 3/4 BSPT M20 8202 1253 34 3/4 BSP

F – Female F10 8202 1304 87 3/8 BSP MT – Male taper thread MT08 8202 1253 35 1/4 BSPT
F15 8202 1304 88 1/2 BSP MT10 8202 1253 40 3/8 BSPT
F20 8202 1304 89 3/4 BSP MT15 8202 1253 45 1/2 BSPT

F – Female F08 8202 1253 50 1/4 BSP
F10 8202 1253 55 3/8 BSP
F15 8202 1253 60 1/2 BSP
F20 8202 1253 63 3/4 BSP

QIC 15SE and NIP EU 10.4, 41 l/s (recommended air flow at 6.3 bar pressure)
Connection Coupling Size Connection Nipple Size
type QIC 15SE Ordering No. mm in type NIP EU 10.4 Ordering No. mm in
H – Hose H10 8202 1305 30 10 3/8 H – Hose H06 8202 1253 00 6.3 1/4
H13 8202 1305 31 12.5 1/2 H08 8202 1253 05 8 5/16
H16 8202 1305 32 16 5/8 H10 8202 1253 10 10 3/8
H13 8202 1253 15 12.5 1/2
H16 8202 1253 20 16 5/8
H20 8202 1253 23 19 3/4
M – Male thread M08 8202 1305 33 1/4 BSP M – Male thread M10 8202 1253 25 3/8 BSP
M10 8202 1305 34 3/8 BSP M15 8202 1253 30 1/2 BSP
M15 8202 1305 35 1/2 BSP M20 8202 1253 34 3/4 BSP

F – Female thread F15 8202 1305 36 1/2 BSP MT – Male taper thread MT08 8202 1253 35 1/4 BSPT
MT10 8202 1253 40 3/8 BSPT
MT15 8202 1253 45 1/2 BSPT

F – Female thread F08 8202 1253 50 1/4 BSP
F10 8202 1253 55 3/8 BSP
F15 8202 1253 60 1/2 BSP
F20 8202 1253 63 3/4 BSP

Air line installation 127
