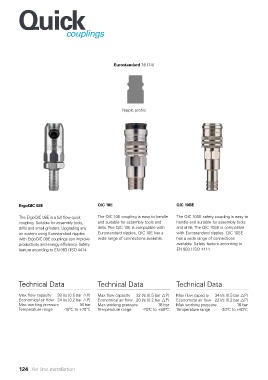

Eurostandard 7.6 (7.4)

Nipple profile

ErgoQIC 08E QIC 10E QIC 10SE

The ErgoQIC 08E is a full flow quick The QIC 10E coupling is easy to handle The QIC 10SE safety coupling is easy to
coupling. Suitable for assembly tools, and suitable for assembly tools and handle and suitable for assembly tools
drills and small grinders. Upgrading any drills. The QIC 10E is compatible with and drills. The QIC 10SE is compatible
air system using Eurostandard nipples Eurostandard nipples. QIC 10E has a with Eurostandard nipples. QIC 10SE
with ErgoQIC 08E couplings can improve wide range of connections available. has a wide range of connections
productivity and energy efficiency. Safety available. Safety feature according to
feature according to EN 983 / ISO 4414. EN 983 / ISO 4414.

Technical Data Technical Data Technical Data

Max flow capacity 38 l/s (0.5 bar P) Max flow capacity 32 l/s (0.5 bar P) Max flow capacity 34 l/s (0.5 bar P)
Economical air flow 24 l/s (0.2 bar P) Economical air flow 20 l/s (0.2 bar P) Economical air flow 22 l/s (0.2 bar P)
Max working pressure 16 bar Max working pressure 16 bar Max working pressure 16 bar
Temperature range -10ºC to +70ºC Temperature range -20ºC to +80ºC Temperature range -20ºC to +80ºC
