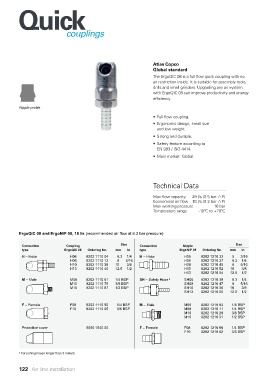

Quick

couplings

Atlas Copco
Global standard
The ErgoQIC 08 is a full flow quick coupling with no
air restriction inside. It is suitable for assembly tools,
drills and small grinders. Upgrading any air system
with ErgoQIC 08 can improve productivity and energy
efficiency.
Nipple profile

• Full flow coupling.
• Ergonomic design, small size
and low weight.
• Strong and durable.
• Safety feature according to
EN 983 / ISO 4414.
• Main market: Global.

Technical Data

Max flow capacity 29 l/s (0.5 bar P)
Economical air flow 18 l/s (0.2 bar P)
Max working pressure 16 bar
Temperature range -10ºC to +70ºC

ErgoQIC 08 and ErgoNIP 08, 18 l/s (recommended air flow at 6.3 bar pressure)

Connection Coupling Size Connection Nipple Size
type ErgoQIC 08 Ordering No. mm in type ErgoNIP 08 Ordering No. mm in
H – Hose H06 8202 1110 04 6.3 1/4 H – Hose H05 8202 1210 33 5 3/16
H08 8202 1110 12 8 5/16 H06 8202 1210 37 6.3 1/4
H10 8202 1110 38 10 3/8 H08 8202 1210 45 8 5/16
H13 8202 1110 40 12.5 1/2 H10 8202 1210 52 10 3/8
H13 8202 1210 54 12.5 1/2
M – Male M08 8202 1110 61 1/4 BSP SH – Safety Hose SH06 8202 1210 39 6.3 1/4
a
M10 8202 1110 79 3/8 BSP SH08 8202 1210 47 8 5/16
M15 8202 1110 87 1/2 BSP SH10 8202 1210 50 10 3/8
SH13 8202 1210 55 12.5 1/2

F – Female F08 8202 1110 90 1/4 BSP M – Male M06 8202 1210 03 1/8 BSP
F10 8202 1110 95 3/8 BSP M08 8202 1210 11 1/4 BSP
M10 8202 1210 29 3/8 BSP
M15 8202 1210 31 1/2 BSP

Protective cover 9090 1940 00 F – Female F08 8202 1210 60 1/4 BSP
F10 8202 1210 62 3/8 BSP

a For joining hoses longer than 3 meters.

122 Air line installation
