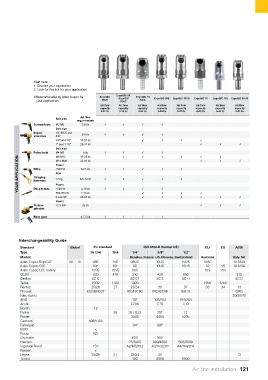

Selection

Start here:
1. Choose your application
2. Look for the tick for your application
√ Recommended by Atlas Copco for ErgoQIC ErgoQIC 08 ErgoQIC 10 ErgoQIC 08E ErgoQIC 10US ErgoQIC 10 ErgoQIC 15E ErgoQIC 15US
ErgoQIC
your application 08US 10AC ASIA
Air flow Air flow Air flow Air flow Air flow Air flow Air flow Air flow
capacity capacity capacity capacity capacity capacity capacity capacity
0-11 l/s 0-18 l/s 0-22 l/s 0-24 l/s 0-27 l/s 0-40 l/s 0-49 l/s 0-52 l/s
Bolt size Air flow
requirements
Screwdrivers M2-M6 2-8 l/s √ √ √ √
Bolt size
Impact 1/4" HEX and 2-9 l/s
wrenches 3/8" √ √ √ √
3/8" and 1/2" 10-20 l/s √ √ √ √
1" and 1 1/2" 28-37 l/s √ √ √
Bolt size
9 l/s
Pulse tools M4-M5 15-25 l/s √ √ √ √ √ √ √ √ √ √ √ √ √
M6-M12
YOUR APPLICATION Drills Power 6.5-14 l/s √ √ √ √ √ √ √ √ √ √
M14-M20
32-49 l/s
<820 W
8-21 l/s
Size
Chipping
<7 kg
hammers
Power
3-10 l/s
<500 W
Die grinders
500-900 W
7-19 l/s
0.9-2 kW 20-35 l/s √ √ √ √ √ √ √ √ √ √ √ √ √ √
Power
Turbine <2.5 kW 32 l/s √ √ √
grinders
Blow guns 4-7.5 l/s √ √ √ √
Interchangeability Guide
Standard Global EU standard ISO 6150-B (former US) EU EU ASIA
Type 7.6 (7.4) 10.4 1/4" 3/8" 1/2"
Market Benelux, France, US, Norway, Switzerland Australia Italy, SA
Atlas Copco ErgoQIC 08 10 08E 15E 08US 10US 15US 10AC 10 ASIA
Atlas Copco QIC 10E 15E 08 10US 15US 10 15 10 ASIA
Atlas Copco QIC Safety 10SE 15SE 08S 10S 15S
CEJN 320 410 310 430 550 315
Oetiker SC C SC B1 SC E SC H SC D
Tema 1600 1700 1400 1650 1750
Rectus 25/26 27 23/24 30 37 33 34 13
Prevost ESC/ERC07 IRC/ISC06 IRC/ISC08 ISG 11 ORG
Nitto Kohki 20/30/40
ARO 102 103/203 104/204
Amflo C20B C26 C10
Bosch 7.2
Parker 55 30 / B23 25F 17
Foster 3003 4404 5205
Camozzi 508/5180
Dynaquip 1/4" 3/8"
EWO x
Festo KD
Gromelle 600 900
Hansen 22/3000 400/4000 500/5000
Ingersoll Rand 7S7 A2/MS/102 A3/103/203 A4/104/204
Kaeser x
Legris 25/26 27 23/24 30 13
Tomco 180 4000 5000
Air line installation 121
