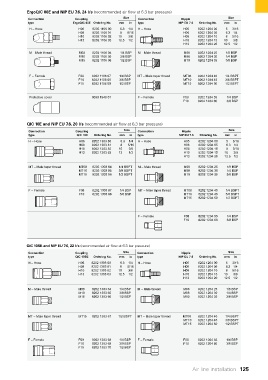

ErgoQIC 08E and NIP EU 7.6, 24 l/s (recommended air flow at 6.3 bar pressure)
Connection Coupling Size Connection Nipple Size
type ErgoQIC 08E Ordering No. mm in type NIP EU 7.6 Ordering No. mm in
H – Hose H06 8202 1106 00 6.3 1/4 H – Hose H05 8202 1204 00 5 3/16
H08 8202 1106 01 8 5/16 H06 8202 1204 05 6.3 1/4
H10 8202 1106 02 10 3/8 H08 8202 1204 10 8 5/16
H13 8202 1106 03 12.5 1/2 H10 8202 1204 15 10 3/8
H13 8202 1204 20 12.5 1/2

M – Male thread M08 8202 1106 04 1/4 BSP M – Male thread M06 8202 1204 25 1/8 BSP
M10 8202 1106 05 3/8 BSP M08 8202 1204 30 1/4 BSP
M15 8202 1106 06 1/2 BSP M10 8202 1204 35 3/8 BSP

F – Female F08 8202 1106 07 1/4 BSP MT – Male taper thread MT08 8202 1204 40 1/4 BSPT
F10 8202 1106 08 3/8 BSP MT10 8202 1204 45 3/8 BSPT
F15 8202 1106 09 1/2 BSP MT15 8202 1204 50 1/2 BSPT

Protective cover 9090 1940 01 F – Female F08 8202 1204 55 1/4 BSP
F10 8202 1204 60 3/8 BSP

QIC 10E and NIP EU 7.6, 20 l/s (recommended air flow at 6.3 bar pressure)
Connection Coupling Size Connection Nipple Size
type QIC 10E Ordering No. mm in type NIP EU 7.6 Ordering No. mm in
H – Hose H06 8202 1303 80 6.3 1/4 H – Hose H05 8202 1204 00 5 3/16
H08 8202 1303 81 8 5/16 H06 8202 1204 05 6.3 1/4
H10 8202 1303 82 10 3/8 H08 8202 1204 10 8 5/16
H13 8202 1303 83 13 1/2 H10 8202 1204 15 10 3/8
H13 8202 1204 20 12.5 1/2

MT – Male taper thread MT08 8202 1303 84 1/4 BSPT M – Male thread M06 8202 1204 25 1/8 BSP
MT10 8202 1303 85 3/8 BSPT M08 8202 1204 30 1/4 BSP
MT15 8202 1303 86 1/2 BSPT M10 8202 1204 35 3/8 BSP

F – Female F08 8202 1303 87 1/4 BSP MT – Male taper thread MT08 8202 1204 40 1/4 BSPT
F10 8202 1303 88 3/8 BSP MT10 8202 1204 45 3/8 BSPT
MT15 8202 1204 50 1/2 BSPT

F – Female F08 8202 1204 55 1/4 BSP
F10 8202 1204 60 3/8 BSP

QIC 10SE and NIP EU 7.6, 22 l/s (recommended air flow at 6.3 bar pressure)
Connection Coupling Size Connection Nipple Size
type QIC 10SE Ordering No. mm in type NIP EU 7.6 Ordering No. mm in
H – Hose H06 8202 1303 60 6.3 1/4 H – Hose H05 8202 1204 00 5 3/16
H08 8202 1303 61 8 5/16 H06 8202 1204 05 6.3 1/4
H10 8202 1303 62 10 3/8 H08 8202 1204 10 8 5/16
H13 8202 1303 63 12.5 1/2 H10 8202 1204 15 10 3/8
H13 8202 1204 20 12.5 1/2

M – Male thread M08 8202 1303 64 1/4 BSP M – Male thread M06 8202 1204 25 1/8 BSP
M10 8202 1303 65 3/8 BSP M08 8202 1204 30 1/4 BSP
M15 8202 1303 66 1/2 BSP M10 8202 1204 35 3/8 BSP

MT – Male taper thread MT15 8202 1303 67 1/2 BSPT MT – Male taper thread MT08 8202 1204 40 1/4 BSPT
MT10 8202 1204 45 3/8 BSPT
MT15 8202 1204 50 1/2 BSPT

F – Female F08 8202 1303 68 1/4 BSP F – Female F08 8202 1204 55 1/4 BSP
F10 8202 1303 69 3/8 BSP F10 8202 1204 60 3/8 BSP
F15 8202 1303 70 1/2 BSP

Air line installation 125
