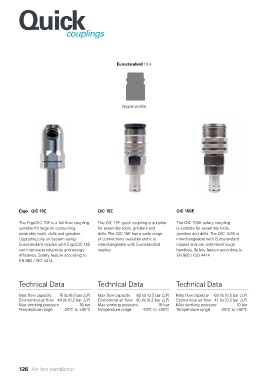

Page 126 - ingenioren

Quick

couplings

Eurostandard 10.4

Nipple profile

Ergo QIC 15E QIC 15E QIC 15SE

The ErgoQIC 15E is a full flow coupling The QIC 15E quick coupling is suitable The QIC 15SE safety coupling
suitable for large air consuming for assembly tools, grinders and is suitable for assembly tools,
assembly tools, drills and grinders. drills. The QIC 15E has a wide range grinders and drills. The QIC 15SE is
Upgrading any air system using of connections available and it is interchangeable with Eurostandard
Eurostandard nipples with ErgoQIC 15E interchangeable with Eurostandard nipples and can withstand rough
can improve productivity and energy nipples. handling. Safety feature according to
efficiency. Safety feature according to EN 983 / ISO 4414.
EN 983 / ISO 4414.

Technical Data Technical Data Technical Data

Max flow capacity 76 l/s (0.5 bar P) Max flow capacity 62 l/s (0.5 bar P) Max flow capacity 63 l/s (0.5 bar P)
Economical air flow 49 l/s (0.2 bar P) Economical air flow 40 l/s (0.2 bar P) Economical air flow 41 l/s (0.2 bar P)
Max working pressure 16 bar Max working pressure 10 bar Max working pressure 10 bar
Temperature range -20ºC to +80ºC Temperature range -20ºC to +80ºC Temperature range -20ºC to +80ºC

126 Air line installation
