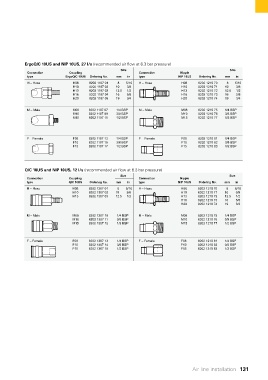

ErgoQIC 10US and NIP 10US, 27 l/s (recommended air flow at 6.3 bar pressure)
Size Size
Connection Coupling Connection Nipple
type ErgoQIC 10US Ordering No. mm in type NIP 10US Ordering No. mm in
H – Hose H08 8202 1107 01 8 5/16 H – Hose H08 8202 1210 70 8 5/16
H10 8202 1107 02 10 3/8 H10 8202 1210 71 10 3/8
H13 8202 1107 03 12.5 1/2 H13 8202 1210 72 12.5 1/2
H16 8202 1107 04 16 5/8 H16 8202 1210 73 16 5/8
H20 8202 1107 05 19 3/4 H20 8202 1210 74 19 3/4

M – Male M08 8202 1107 07 1/4 BSP M – Male M08 8202 1210 75 1/4 BSP
M10 8202 1107 09 3/8 BSP M10 8202 1210 76 3/8 BSP
M15 8202 1107 11 1/2 BSP M15 8202 1210 77 1/2 BSP

F – Female F08 8202 1107 13 1/4 BSP F – Female F08 8202 1210 81 1/4 BSP
F10 8202 1107 15 3/8 BSP F10 8202 1210 82 3/8 BSP
F15 8202 1107 17 1/2 BSP F15 8202 1210 83 1/2 BSP

QIC 10US and NIP 10US, 12 l/s (recommended air flow at 6.3 bar pressure)
Size Size
Connection Coupling Connection Nipple
type QIC 10US Ordering No. mm in type NIP 10US Ordering No. mm in
H – Hose H08 8202 1307 01 8 5/16 H – Hose H08 8202 1210 70 8 5/16
H10 8202 1307 02 10 3/8 H10 8202 1210 71 10 3/8
H13 8202 1307 03 12.5 1/2 H13 8202 1210 72 12.5 1/2
H16 8202 1210 73 16 5/8
H20 8202 1210 74 19 3/4

M – Male M08 8202 1307 10 1/4 BSP M – Male M08 8202 1210 75 1/4 BSP
M10 8202 1307 11 3/8 BSP M10 8202 1210 76 3/8 BSP
M15 8202 1307 12 1/2 BSP M15 8202 1210 77 1/2 BSP

F – Female F08 8202 1307 13 1/4 BSP F – Female F08 8202 1210 81 1/4 BSP
F10 8202 1307 14 3/8 BSP F10 8202 1210 82 3/8 BSP
F15 8202 1307 15 1/2 BSP F15 8202 1210 83 1/2 BSP

Air line installation 131
