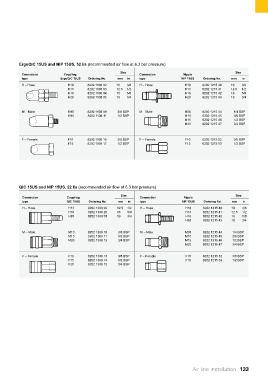

ErgoQIC 15US and NIP 15US, 52 l/s (recommended air flow at 6.3 bar pressure)

Size Size
Connection Coupling Connection Nipple
type ErgoQIC 15US Ordering No. mm in type NIP 15US Ordering No. mm in
H – Hose H10 8202 1108 02 10 3/8 H – Hose H10 8202 1215 40 10 3/8
H13 8202 1108 03 12.5 1/2 H13 8202 1215 41 12.5 1/2
H16 8202 1108 04 16 5/8 H16 8202 1215 42 16 5/8
H20 8202 1108 05 19 3/4 H20 8202 1215 43 19 3/4

M – Male M10 8202 1108 09 3/8 BSP M – Male M08 8202 1215 44 1/4 BSP
M15 8202 1108 11 1/2 BSP M10 8202 1215 45 3/8 BSP
M15 8202 1215 46 1/2 BSP
M20 8202 1215 47 3/4 BSP

F – Female F10 8202 1108 15 3/8 BSP F – Female F10 8202 1215 52 3/8 BSP
F15 8202 1108 17 1/2 BSP F15 8202 1215 53 1/2 BSP

QIC 15US and NIP 15US, 22 l/s (recommended air flow at 6.3 bar pressure)

Size Size
Connection Coupling Connection Nipple
type QIC 15US Ordering No. mm in type NIP 15US Ordering No. mm in
H – Hose H13 8202 1308 02 12.5 1/2 H – Hose H10 8202 1215 40 10 3/8
H16 8202 1308 20 16 5/8 H13 8202 1215 41 12.5 1/2
H20 8202 1308 03 19 3/4 H16 8202 1215 42 16 5/8
H20 8202 1215 43 19 3/4

M – Male M10 8202 1308 10 3/8 BSP M – Male M08 8202 1215 44 1/4 BSP
M15 8202 1308 11 1/2 BSP M10 8202 1215 45 3/8 BSP
M20 8202 1308 12 3/4 BSP M15 8202 1215 46 1/2 BSP
M20 8202 1215 47 3/4 BSP

F – Female F10 8202 1308 13 3/8 BSP F – Female F10 8202 1215 52 3/8 BSP
F15 8202 1308 14 1/2 BSP F15 8202 1215 53 1/2 BSP
F20 8202 1308 15 3/4 BSP

Air line installation 133
