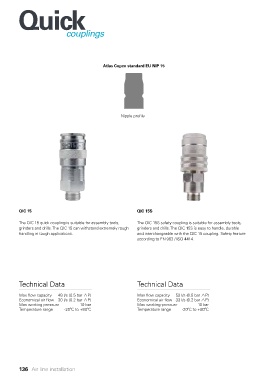

Quick

Couplings
couplings

Atlas Copco standard EU NIP 15

Nipple profile

QIC 15 QIC 15S

The QIC 15 quick coupling is suitable for assembly tools, The QIC 15S safety coupling is suitable for assembly tools,
grinders and drills. The QIC 15 can withstand extremely rough grinders and drills. The QIC 15S is easy to handle, durable
handling in tough applications. and interchangeable with the QIC 15 coupling. Safety feature
according to EN 983 / ISO 4414.

Technical Data Technical Data

Max flow capacity 48 l/s (0.5 bar P) Max flow capacity 52 l/s (0.5 bar P)
Economical air flow 30 l/s (0.2 bar P) Economical air flow 33 l/s (0.2 bar P)
Max working pressure 10 bar Max working pressure 10 bar
Temperature range -20ºC to +80ºC Temperature range -20ºC to +80ºC

136 Air line installation
