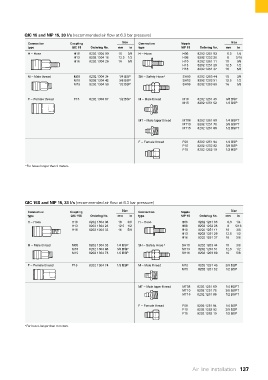

QIC 15 and NIP 15, 30 l/s (recommended air flow at 6.3 bar pressure)

Connection Coupling Size Connection Nipple Size
type QIC 15 Ordering No. mm in type NIP 15 Ordering No. mm in
H – Hose H10 8202 1304 00 10 3/8 H – Hose H06 8202 1251 03 6.3 1/4
H13 8202 1304 18 12.5 1/2 H08 8202 1252 28 8 5/16
H16 8202 1304 26 16 5/8 H10 8202 1251 11 10 3/8
H13 8202 1251 29 12.5 1/2
H16 8202 1251 37 16 5/8
M – Male thread M08 8202 1304 34 1/4 BSP SH – Safety Hose SH10 8202 1203 44 10 3/8
a
M10 8202 1304 42 3/8 BSP SH13 8202 1203 51 12.5 1/2
M15 8202 1304 59 1/2 BSP SH16 8202 1203 69 16 5/8

F – Female thread F15 8202 1304 67 1/2 BSP M – Male thread M10 8202 1251 45 3/8 BSP
M15 8202 1251 52 1/2 BSP

MT – Male taper thread MT08 8202 1251 60 1/4 BSPT
MT10 8202 1251 78 3/8 BSPT
MT15 8202 1251 86 1/2 BSPT

F – Female thread F08 8202 1251 94 1/4 BSP
F10 8202 1252 02 3/8 BSP
F15 8202 1252 10 1/2 BSP

a For hoses longer than 3 meters.

QIC 15S and NIP 15, 33 l/s (recommended air flow at 6.3 bar pressure)

Connection Coupling Size Connection Nipple Size
type QIC 15S Ordering No. mm in type NIP 15 Ordering No. mm in
H – Hose H10 8202 1304 08 10 3/8 H – Hose H06 8202 1251 03 6.3 1/4
H13 8202 1304 23 12.5 1/2 H08 8202 1252 28 8 5/16
H16 8202 1304 33 16 5/8 H10 8202 1251 11 10 3/8
H13 8202 1251 29 12.5 1/2
H16 8202 1251 37 16 5/8
a
M – Male thread M08 8202 1304 38 1/4 BSP SH – Safety Hose SH10 8202 1203 44 10 3/8
M10 8202 1304 48 3/8 BSP SH13 8202 1203 51 12.5 1/2
M15 8202 1304 73 1/2 BSP SH16 8202 1203 69 16 5/8

F – Female thread F15 8202 1304 74 1/2 BSP M – Male thread M10 8202 1251 45 3/8 BSP
M15 8202 1251 52 1/2 BSP

MT – Male taper thread MT08 8202 1251 60 1/4 BSPT
MT10 8202 1251 78 3/8 BSPT
MT15 8202 1251 86 1/2 BSPT

F – Female thread F08 8202 1251 94 1/4 BSP
F10 8202 1252 02 3/8 BSP
F15 8202 1252 10 1/2 BSP

a For hoses longer than 3 meters.

Air line installation 137
