Quick

Couplings
couplings

Asia standard

Nipple profile

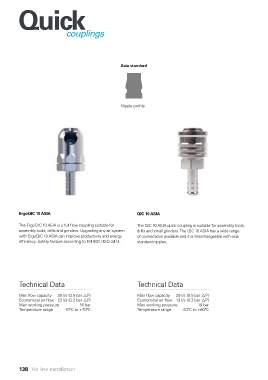

ErgoQIC 10 ASIA QIC 10 ASIA

The ErgoQIC 10 ASIA is a full flow coupling suitable for The QIC 10 ASIA quick coupling is suitable for assembly tools,
assembly tools, drills and grinders. Upgrading any air system drills and small grinders. The QIC 10 ASIA has a wide range
with ErgoQIC 10 ASIA can improve productivity and energy of connections available and it is interchangeable with asia
efficiency. Safety feature according to EN 983 / ISO 4414. standard nipples.

Technical Data Technical Data

Max flow capacity 35 l/s (0.5 bar P) Max flow capacity 20 l/s (0.5 bar P)
Economical air flow 22 l/s (0.2 bar P) Economical air flow 13 l/s (0.2 bar P)
Max working pressure 16 bar Max working pressure 10 bar
Temperature range -10ºC to +70ºC Temperature range -20ºC to +80ºC

138 Air line installation
