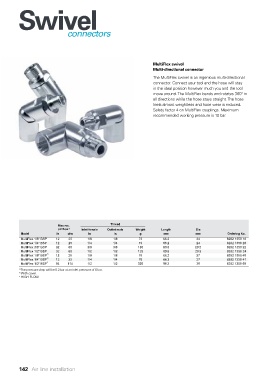

Swivel

connectors

MultiFlex swivel
Multi-directional connector
The MultiFlex swivel is an ingenious multi-directional
connector. Connect your tool and the hose will stay
in the ideal position however much you and the tool
move around. The MultiFlex bends and rotates 360º in
all directions while the hose stays straight. The hose
feels almost weightless and hose wear is reduced.
Safety factor 4 on MultiFlex couplings. Maximum
recommended working pressure is 10 bar.

Max rec. Thread
a
air flow Inlet female Outlet male Weight Length Dia
Model l/s cfm in in g mm mm Ordering No.
MultiFlex 1/8" BSP 12 25 1/8 1/8 73 66.2 24 8202 1350 18
MultiFlex 1/4" BSP 12 25 1/4 1/4 73 66.2 24 8202 1350 20
MultiFlex 3/8" BSP 32 68 3/8 3/8 130 80.6 29.5 8202 1350 22
MultiFlex 1/2" BSP 32 68 1/2 1/2 125 80.6 29.5 8202 1350 24
b
MultiFlex 1/8" BSP 12 25 1/8 1/8 76 66.2 27 8202 1350 40
b
MultiFlex 1/4" BSP 12 25 1/4 1/4 76 66.2 27 8202 1350 41
c
MultiFlex 1/2" BSP 54 114 1/2 1/2 326 98.3 39 8202 1350 60
a The pressure drop will be 0.2 bar at an inlet pressure of 6 bar.
b With cover.
c HIGH FLOW.

142 Air line installation
