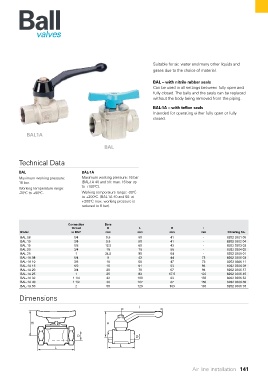

Ball

valves

Suitable for air, water and many other liquids and
gases due to the choice of material.

BAL – with nitrile rubber seals
Can be used in all settings between fully open and
fully closed. The balls and the seals can be replaced
without the body being removed from the piping.

BAL-1A – with teflon seals
Intended for operating either fully open or fully
closed.

BAL1A

BAL

Technical Data

BAL BAL-1A
Maximum working pressure: Maximum working pressure: 16 bar
16 bar. (BAL-1A 40 and 50: max. 16 bar up
o
Working temperature range: to +100 C).
o
-20 C to +90 C. Working temperature range: -30 C
o
o
o
to +200 C. (BAL-1A 40 and 50: at
+200 C max. working pressure is
o
reduced to 8 bar).
Connection Bore
thread D L H I
Model in BSP mm mm mm mm Ordering No.
BAL 08 1/4 9.5 50 41 - 8202 0301 05
BAL 10 3/8 9.5 50 41 - 8202 0302 04
BAL 15 1/2 12.5 60 43 - 8202 0303 03
BAL 20 3/4 19 75 55 - 8202 0304 02
BAL 25 1 24.5 90 64 - 8202 0305 01
BAL-1A 08 1/4 8 43 44 73 8202 0306 03
BAL-1A 10 3/8 10 50 47 73 8202 0306 11
BAL-1A 15 1/2 15 61 53 94 8202 0306 29
BAL-1A 20 3/4 20 70 57 94 8202 0306 37
BAL-1A 25 1 25 83 67.5 122 8202 0306 45
BAL-1A 32 1 1/4 32 100 83 150 8202 0306 52
BAL-1A 40 1 1/2 38 107 87 150 8202 0306 60
BAL-1A 50 2 50 129 103 193 8202 0306 78
Dimensions

I

H H

D D
L
L

Air line installation 141
