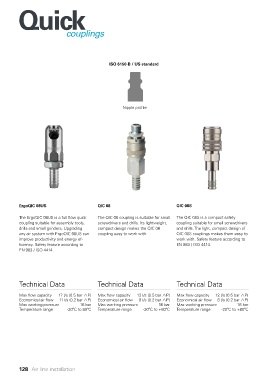

Quick

couplings
Couplings

ISO 6150-B / US standard

Nipple profile

ErgoQIC 08US QIC 08 QIC 08S

The ErgoQIC 08US is a full flow quick The QIC 08 coupling is suitable for small The QIC 08S is a compact safety
coupling suitable for assembly tools, screwdrivers and drills. Its lightweight, coupling suitable for small screwdrivers
drills and small grinders. Upgrading compact design makes the QIC 08 and drills. The light, compact design of
any air system with ErgoQIC 08US can coupling easy to work with. QIC 08S couplings makes them easy to
improve productivity and energy ef- work with. Safety feature according to
ficiency. Safety feature according to EN 983 / ISO 4414.
EN 983 / ISO 4414.

Technical Data Technical Data Technical Data

Max flow capacity 17 l/s (0.5 bar P) Max flow capacity 12 l/s (0.5 bar P) Max flow capacity 12 l/s (0.5 bar P)
Economical air flow 11 l/s (0.2 bar P) Economical air flow 8 l/s (0.2 bar P) Economical air flow 8 l/s (0.2 bar P)
Max working pressure 16 bar Max working pressure 16 bar Max working pressure 16 bar
Temperature range -20ºC to 80ºC Temperature range -20ºC to +80ºC Temperature range -20ºC to +80ºC

128 Air line installation
