P. 129

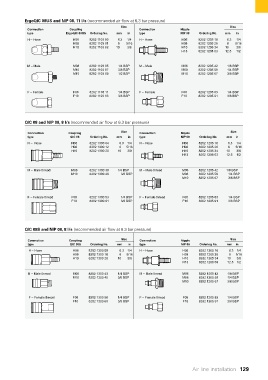

ErgoQIC 08US and NIP 08, 11 l/s (recommended air flow at 6.3 bar pressure)
Size Size
Connection Coupling Connection Nipple
type ErgoQIC 08US Ordering No. mm in type NIP 08 Ordering No. mm in
H – Hose H06 8202 1103 00 6.3 1/4 H – Hose H06 8202 1205 18 6.3 1/4
H08 8202 1103 01 8 5/16 H08 8202 1205 26 8 5/16
H10 8202 1103 02 10 3/8 H10 8202 1205 34 10 3/8
H13 8202 1208 03 12.5 1/2
M – Male M08 8202 1103 05 1/4 BSP M – Male M06 8202 1205 42 1/8 BSP
M10 8202 1103 07 3/8 BSP M08 8202 1205 59 1/4 BSP
M15 8202 1103 09 1/2 BSP M10 8202 1205 67 3/8 BSP
F – Female F08 8202 1103 11 1/4 BSP F – Female F08 8202 1205 83 1/4 BSP
F10 8202 1103 13 3/8 BSP F10 8202 1205 91 3/8 BSP
QIC 08 and NIP 08, 8 l/s (recommended air flow at 6.3 bar pressure)
Connection Coupling Size Connection Nipple Size
type QIC 08 Ordering No. mm in type NIP 08 Ordering No. mm in
H – Hose H06 8202 1300 04 6.3 1/4 H – Hose H06 8202 1205 18 6.3 1/4
H08 8202 1300 12 8 5/16 H08 8202 1205 26 8 5/16
H10 8202 1300 20 10 3/8 H10 8202 1205 34 10 3/8
H13 8202 1208 03 12.5 1/2
M – Male thread M08 8202 1300 38 1/4 BSP M – Male thread M06 8202 1205 42 1/8 BSP
M10 8202 1300 46 3/8 BSP M08 8202 1205 59 1/4 BSP
M10 8202 1205 67 3/8 BSP
F – Female thread F08 8202 1300 53 1/4 BSP F – Female thread F08 8202 1205 83 1/4 BSP
F10 8202 1300 61 3/8 BSP F10 8202 1205 91 3/8 BSP
QIC 08S and NIP 08, 8 l/s (recommended air flow at 6.3 bar pressure)
Connection Coupling Size Connection Nipple Size
type QIC 08S Ordering No. mm in type NIP 08 Ordering No. mm in
H – Hose H06 8202 1300 09 6.3 1/4 H – Hose H06 8202 1205 18 6.3 1/4
H08 8202 1300 18 8 5/16 H08 8202 1205 26 8 5/16
H10 8202 1300 28 10 3/8 H10 8202 1205 34 10 3/8
H13 8202 1208 03 12.5 1/2
M – Male thread M08 8202 1300 43 1/4 BSP M – Male thread M06 8202 1205 42 1/8 BSP
M10 8202 1300 45 3/8 BSP M08 8202 1205 59 1/4 BSP
M10 8202 1205 67 3/8 BSP
F – Female thread F08 8202 1300 58 1/4 BSP F – Female thread F08 8202 1205 83 1/4 BSP
F10 8202 1300 68 3/8 BSP F10 8202 1205 91 3/8 BSP
Air line installation 129
