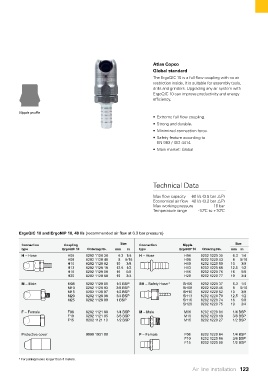

Atlas Copco
Global standard
The ErgoQIC 10 is a full flow coupling with no air
restriction inside. It is suitable for assembly tools,
drills and grinders. Upgrading any air system with
ErgoQIC 10 can improve productivity and energy
efficiency.

Nipple profile
• Extreme full flow coupling.
• Strong and durable.
• Minimized connection force.
• Safety feature according to
EN 983 / ISO 4414.
• Main market: Global

Technical Data

Max flow capacity 60 l/s (0.5 bar P)
Economical air flow 40 l/s (0.2 bar P)
Max working pressure 16 bar
Temperature range -10ºC to +70ºC

ErgoQIC 10 and ErgoNIP 10, 40 l/s (recommended air flow at 6.3 bar pressure)

Connection Coupling Size Connection Nipple Size
type ErgoQIC 10 Ordering No. mm in type ErgoNIP 10 Ordering No. mm in
H – Hose H06 8202 1120 30 6.3 1/4 H – Hose H06 8202 1220 35 6.3 1/4
H08 8202 1120 40 8 5/16 H08 8202 1220 43 8 5/16
H10 8202 1120 02 10 3/8 H10 8202 1220 50 10 3/8
H13 8202 1120 10 12.5 1/2 H13 8202 1220 68 12.5 1/2
H16 8202 1120 50 16 5/8 H16 8202 1220 76 16 5/8
H20 8202 1120 60 19 3/4 H20 8202 1220 77 19 3/4
a
M – Male M08 8202 1120 85 1/4 BSP SH – Safety Hose SH06 8202 1220 37 6.3 1/4
M10 8202 1120 93 3/8 BSP SH08 8202 1220 45 8 5/16
M15 8202 1120 97 1/2 BSP SH10 8202 1220 52 10 3/8
M20 8202 1120 98 3/4 BSP SH13 8202 1220 70 12.5 1/2
M25 8202 1120 99 1 BSP SH16 8202 1220 74 16 5/8
SH20 8202 1220 75 19 3/4
F – Female F08 8202 1121 00 1/4 BSP M – Male M08 8202 1220 01 1/4 BSP
F10 8202 1121 05 3/8 BSP M10 8202 1220 19 3/8 BSP
F15 8202 1121 10 1/2 BSP M15 8202 1220 27 1/2 BSP

Protective cover 9090 1931 00 F – Female F08 8202 1220 84 1/4 BSP
F10 8202 1220 86 3/8 BSP
F15 8202 1220 88 1/2 BSP

a For joining hoses longer than 3 meters.
Air line installation 123
