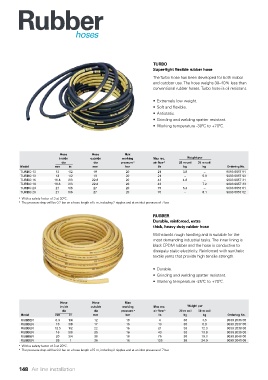

Rubber

hoses

TURBO
Super-light flexible rubber hose
The Turbo hose has been developed for both indoor
and outdoor use. The hose weighs 30–40% less than
conventional rubber hoses. Turbo hose is oil resistant.

• Extremely low weight.
• Soft and flexible.
• Antistatic.
• Grinding and welding spatter resistant.
• Working temperature -30ºC to +70ºC.

Hose Hose Max
inside outside working Max rec. Weight per
b
dia dia pressure air flow 20 m coil 30 m coil
a
Model mm in mm bar l/s kg kg Ordering No.
TURBO 13 13 1/2 19 20 21 3.9 – 9093 0057 91
TURBO 13 13 1/2 19 20 21 – 5.9 9093 0057 93
TURBO 16 16.8 2/3 22.8 20 43 4.8 – 9093 0057 31
TURBO 16 16.8 2/3 22.8 20 43 – 7.2 9093 0057 33
TURBO 20 21 5/6 27 20 75 5.4 – 9093 0057 61
TURBO 20 21 5/6 27 20 75 - 8.1 9093 0057 62
a With a safety factor of 3 at 20°C.
b The pressure drop will be 0.2 bar on a hose length of 5 m, including 2 nipples and at an inlet pressure of 7 bar.

RUBBER
Durable, reinforced, extra
thick, heavy duty rubber hose
Withstands rough handling and is suitable for the
most demanding industrial tasks. The inner lining is
black EPDM rubber and the hose is conductive to
dissipate static electricity. Reinforced with synthetic
textile yarns that provide high tensile strength.

• Durable.
• Grinding and welding spatter resistant.
• Working temperature -25ºC to +70ºC.

Hose Hose Max
inside outside working Max rec. Weight per
dia dia pressure air flow 20 m coil 30 m coil
b
a
Model mm in mm bar l/s kg kg Ordering No.
RUBBER 6.3 1/4 12 16 4 30 3.5 9030 2036 00
RUBBER 10 3/8 17 16 13 30 6.9 9030 2037 00
RUBBER 12.5 1/2 22 16 21 30 12.3 9030 2038 00
RUBBER 16 5/8 25 16 43 30 13.9 9030 2039 00
RUBBER 20 3/4 30 16 75 30 19.3 9030 2040 00
RUBBER 25 1 36 16 125 30 24.0 9030 2041 00
a With a safety factor of 3 at 20°C.
b The pressure drop will be 0.2 bar on a hose length of 5 m, including 2 nipples and at an inlet pressure of 7 bar.

148 Air line installation
