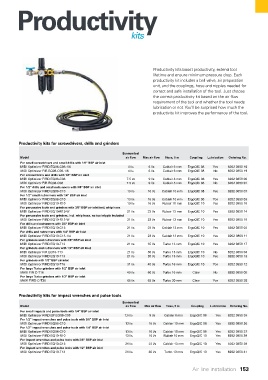

Productivity

kits kits

Productivity kits boost productivity, extend tool
lifetime and ensure minimum pressure drop. Each
productivity kit includes a ball valve, air preparation
unit, and the couplings, hose and nipples needed for
correct and safe installation of the tool. Just choose
the correct productivity kit based on the air flow
requirement of the tool and whether the tool needs
lubrication or not. You’ll be surprised how much the
productivity kit improves the performance of the tool.

Productivity kits for screwdrivers, drills and grinders

Economical
Model air flow Max air flow Hose, 5 m Coupling Lubrication Ordering No.
For small screwdrivers and small drills with 1/8" BSP air inlet
MIDI Optimizer F/RD EQ08-C06-1/8 4 l/s 6 l/s Cablair 6 mm ErgoQIC 08 Yes 8202 0850 10
MIDI Optimizer F/R EQ08-C06-1/8 4 l/s 6 l/s Cablair 6 mm ErgoQIC 08 No 8202 0850 19
For screwdrivers and drills with 1/4" BSP air inlet
MIDI Optimizer F/RD EQ08-C08 7.5 l/s 9 l/s Cablair 8 mm ErgoQIC 08 Yes 8202 0850 00
MIDI Optimizer F/R EQ08-C08 7.5 l/s 9 l/s Cablair 8 mm ErgoQIC 08 No 8202 0850 01
For 1/2" drills and small nutrunners with 3/8" BSP air inlet
MIDI Optimizer F/RD EQ08-C10 13 l/s 16 l/s Cablair 10 mm ErgoQIC 08 Yes 8202 0850 07
For 1/2" small nutrunners with 1/4" BSP air inlet
MIDI Optimizer F/RD EQ08-C10 13 l/s 16 l/s Cablair 10 mm ErgoQIC 08 Yes 8202 0850 03
MIDI Optimizer F/RD EQ10-R10 13 l/s 16 l/s Rubair 10 mm ErgoQIC 10 Yes 8202 0850 16
For percussive tools and grinders with 3/8" BSP air inlet incl. whip hose
MIDI Optimizer F/RD EQ10-R13-W 21 l/s 23 l/s Rubair 13 mm ErgoQIC 10 Yes 8202 0850 14
For percussive tools and grinders, incl. whip hose, no tool nipple included
MIDI Optimizer F/RD EQ10-R13-W 21 l/s 23 l/s Rubair 13 mm ErgoQIC 10 Yes 8202 0850 15
For drills and nutrunners with 3/8" BSP air inlet
MIDI Optimizer F/RD EQ10-C13 21 l/s 23 l/s Cablair 13 mm ErgoQIC 10 Yes 8202 0850 02
For drills and nutrunners with 1/4" BSP air inlet
MIDI Optimizer F/RD EQ10-C13-1/4 21 l/s 23 l/s Cablair 13 mm ErgoQIC 10 Yes 8202 0850 11
For grinders and nutrunners with 3/8" BSP air inlet
MIDI Optimizer F/RD EQ10-T13 21 l/s 35 l/s Turbo 13 mm ErgoQIC 10 Yes 8202 0850 17
For grinders and nutrunners with 1/2" BSP air inlet
MIDI Optimizer F/R EQ10-T13 21 l/s 35 l/s Turbo 13 mm ErgoQIC 10 No 8202 0850 04
MIDI Optimizer F/RD EQ10-T13 21 l/s 35 l/s Turbo 13 mm ErgoQIC 10 Yes 8202 0850 13
For grinders with 1/2" BSP air inlet
MIDI Optimizer F/RD EQ10-T16 31 l/s 40 l/s Turbo 16 mm ErgoQIC 10 Yes 8202 0850 12
For large Turbo grinders with 1/2" BSP air inlet
MAXI F/R C-T16 43 l/s 60 l/s Turbo 16 mm Claw No 8202 0850 05
For large Turbo grinders with 1/2" BSP air inlet
MAXI F/RD C-T20 65 l/s 65 l/s Turbo 20 mm Claw Yes 8202 0850 20

Productivity kits for impact wrenches and pulse tools
Economical
Model air flow Max air flow Hose, 5 m Coupling Lubrication Ordering No.
For small impacts and pulse tools with 1/4" BSP air inlet
MIDI Optimizer F/RD EP EQ08-C08 7.5 l/s 9 l/s Cablair 8 mm ErgoQIC 08 Yes 8202 0850 35
For 1/2" impact wrenches and pulse tools with 3/8" BSP air inlet
MIDI Optimizer F/RD EQ08-C10 13 l/s 16 l/s Cablair 10 mm ErgoQIC 08 Yes 8202 0850 36
For 1/2" impact wrenches and pulse tools with 1/4" BSP air inlet
MIDI Optimizer F/RD EQ08-C10 13 l/s 16 l/s Cablair 10 mm ErgoQIC 08 Yes 8202 0850 37
MIDI Optimizer F/RD EQ10-R10 13 l/s 16 l/s Rubair 10 mm ErgoQIC 10 Yes 8202 0850 38
For impact wrenches and pulse tools with 3/8" BSP air inlet
MIDI Optimizer F/RD EQ10-C13 21 l/s 23 l/s Cablair 13 mm ErgoQIC 10 Yes 8202 0850 39
For impact wrenches and pulse tools with 1/2" BSP air inlet
MIDI Optimizer F/RD EQ10-T13 21 l/s 35 l/s Turbo 13 mm ErgoQIC 10 Yes 8202 0850 41

Air line installation 153
