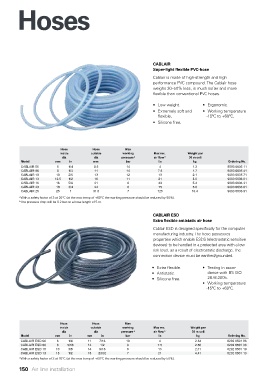

Hoses

CABLAIR
Super-light flexible PVC-hose
Cablair is made of high-strength and high
performance PVC compound. The Cablair hose
weighs 30–50% less, is much softer and more
flexible than conventional PVC hoses.

• Low weight. • Ergonomic.
• Extremely soft and • Working temperature
flexible. -15ºC to +60ºC.
• Silicone free.

Hose Hose Max
inside outside working Max rec. Weight per
dia dia pressure air flow 30 m coli
b
a
Model mm in mm bar l/s kg Ordering No.
CABLAIR 06 6 1/4 8.5 14 4 1.2 9093 0035 11
CABLAIR 08 8 1/3 11 14 7.5 1.7 9093 0035 41
CABLAIR 10 10 2/5 13 12 13 2.1 9093 0035 71
CABLAIR 13 12.5 1/2 16 11 21 3.0 9093 0036 01
CABLAIR 16 16 5/8 21 8 43 5.4 9093 0036 31
CABLAIR 20 19 3/4 24 8 75 5.8 9093 0036 61
CABLAIR 25 25 1 31.5 7 125 10.4 9093 0036 91
a With a safety factor of 3 at 20°C (at the max temp of +60°C the working pressure should be reduced by 50%).
b The pressure drop will be 0.2 bar on a hose length of 5 m.

CABLAIR ESD
Extra flexible antistatic air hose

Cablair ESD is designed specifically for the computer
manufacturing industry. The hose possesses
properties which enable ESDS (electrostatic sensitive
devices) to be handled in a protected area with a low
risk level, as a result of electrostatic discharge. The
connection device must be earthed/grounded.

• Extra flexible. • Testing in accor-
• Antistatic. dance with BS ISO
• Silicone free. 2878:2005.
• Working temperature
-15ºC to +60ºC.

Hose Hose Max
inside outside working Max rec. Weight per
dia dia pressure air flow 30 m coli
a
b
Model mm in mm in bar l/s kg Ordering No.
CABLAIR ESD 06 6 1/4 11 7/16 10 4 2.34 8202 0501 06
CABLAIR ESD 08 8 5/16 12 1/2 9 7.5 2.56 8202 0501 08
CABLAIR ESD 10 10 3/8 14 9/16 8 13 2.71 8202 0501 10
CABLAIR ESD 13 13 1/2 18 23/32 7 21 4.41 8202 0501 13
a With a safety factor of 3 at 20°C (at the max temp of +60°C the working pressure should be reduced by 50%).
150 Air line installation
