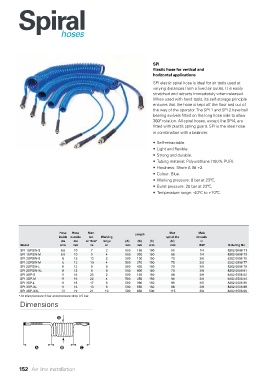

Spiral

hoses

SPI
Elastic hose for vertical and
horizontal applications
SPI elastic spiral hose is ideal for air tools used at
varying distances from a fixed air outlet. It is easily
stretched and retracts immediately when released.
When used with hand tools, its self-storage principle
ensures that the hose is kept off the floor and out of
the way of the operator. The SPI 1 and SPI 2 have ball
bearing swivels fitted on the long hose side to allow
360º rotation. All spiral hoses, except the SPI4, are
fitted with plastic spring guard. SPI is the ideal hose
in combination with a balancer.

• Self-retractable.
• Light and flexible.
• Strong and durable.
• Tubing material: Polyurethane (100% PUR).
• Hardness: Shore A 98 +2.
• Colour: Blue.
• Working pressure: 8 bar at 23ºC.
• Burst pressure: 25 bar at 23ºC.
• Temperature range: -40ºC to +70ºC.

Hose Hose Max. Length Max Male

inside outside rec. Working spiral dia threads
dia dia air flow a range (A) (B) (C) (D) in
Model mm mm l/s m mm mm mm mm BSP Ordering No.
SPI 1SPSW-S 6.5 10 7 2 500 165 150 55 1/4 8202 0508 71
SPI 1SPSW-M 6.5 10 5 4 500 330 150 55 1/4 8202 0508 73
SPI 2SPSW-S 8 12 13 2 500 130 150 70 3/8 8202 0508 75
SPI 2SPSW-M 8 12 10 4 500 270 150 70 3/8 8202 0508 77
SPI 2SPSW-L 8 12 9 6 500 435 150 70 3/8 8202 0508 79
SPI 2SPSW-XL 8 12 6 8 500 600 150 70 3/8 8202 0508 81
SPI 3SP-S 11 16 25 2 500 185 150 98 3/8 8202 0508 82
SPI 3SP-M 11 16 22 4 500 250 150 98 3/8 8202 0508 84
SPI 3SP-L 11 16 17 6 500 390 150 98 3/8 8202 0508 86
SPI 3SP-XL 11 16 13 8 500 550 150 98 3/8 8202 0508 88
SPI 4SP-XXL 13 19 21 10 500 850 500 115 3/8 8202 0508 90
At inlet pressure 6 bar and pressure drop 0.5 bar.
a
Dimensions
