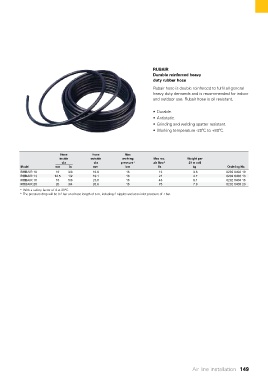

RUBAIR
Durable reinforced heavy
duty rubber hose
Rubair hose is double reinforced to fulfil all general
heavy duty demands and is recommended for indoor
and outdoor use. Rubair hose is oil resistant.

• Durable.
• Antistatic.
• Grinding and welding spatter resistant.
• Working temperature -20ºC to +80ºC.

Hose Hose Max
inside outside working Max rec. Weight per
dia dia pressure air flow 20 m coli
b
a
Model mm in mm bar l/s kg Ordering No.
RUBAIR 10 10 3/8 16.0 16 13 3.6 8202 0402 10
RUBAIR 13 12.5 1/2 19.1 16 21 4.7 8202 0403 13
RUBAIR 16 16 5/8 23.0 16 43 6.1 8202 0404 16
RUBAIR 20 20 3/4 26.6 16 75 7.8 8202 0405 20
a With a safety factor of 4 at 20°C.
b The pressure drop will be 0.2 bar on a hose length of 5 m, including 2 nipples and at an inlet pressure of 7 bar.

Air line installation 149
