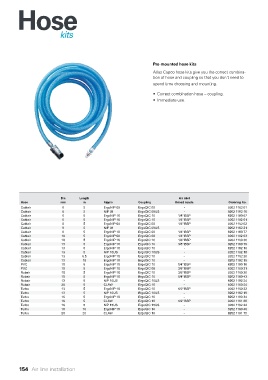

Hose

kits

Pre-mounted hose kits
Atlas Copco hose kits give you the correct combina-
tion of hose and coupling so that you don't need to
spend time choosing and mounting.

• Correct combination hose – coupling.
• Immediate use.

Dia Length Air inlet
Hose mm m Nipple Coupling thread nipple Ordering No.
Cablair 6 5 ErgoNIP 08 ErgoQIC 08 - 8202 1182 01
Cablair 6 5 NIP 08 ErgoQIC 08US - 8202 1182 16
Cablair 6 5 ErgoNIP 10 ErgoQIC 10 1/8" BSP 8202 1180 67
Cablair 6 5 ErgoNIP 10 ErgoQIC 10 1/4" BSP 8202 1182 01
Cablair 8 5 ErgoNIP 08 ErgoQIC 08 1/4" BSP 8202 1182 02
Cablair 8 5 NIP 08 ErgoQIC 08US - 8202 1182 21
Cablair 8 5 ErgoNIP 10 ErgoQIC 08 1/4" BSP 8202 1180 77
Cablair 10 5 ErgoNIP 08 ErgoQIC 08 1/4" BSP 8202 1182 03
Cablair 10 5 ErgoNIP 10 ErgoQIC 10 1/8" BSP 8202 1180 30
Cablair 13 5 ErgoNIP 10 ErgoQIC 10 3/8" BSP 8202 1180 79
Cablair 13 5 ErgoNIP 10 ErgoQIC 10 - 8202 1182 10
Cablair 13 5 NIP 10US ErgoQIC 10US - 8202 1182 18
Cablair 13 8.5 ErgoNIP 10 ErgoQIC 10 - 8202 1182 20
Cablair 13 10 ErgoNIP 10 ErgoQIC 10 - 8202 1182 15
PVC 10 5 ErgoNIP 10 ErgoQIC 10 1/4" BSP 8202 1180 18
PVC 10 5 ErgoNIP 10 ErgoQIC 08 3/8" BSP 8202 1180 31
Rubair 10 5 ErgoNIP 10 ErgoQIC 10 3/8" BSP 8202 1180 20
Rubair 10 5 ErgoNIP 10 ErgoQIC 10 1/4" BSP 8202 1180 43
Rubair 13 5 NIP 10US ErgoQIC 10US - 8202 1182 24
Rubair 20 5 CLAW ErgoQIC 10 - 8202 1180 24
Turbo 13 5 ErgoNIP 10 ErgoQIC 10 1/2" BSP 8202 1180 22
Turbo 13 5 NIP 10US ErgoQIC 10US - 8202 1182 19
Turbo 16 5 ErgoNIP 10 ErgoQIC 10 - 8202 1180 34
Turbo 16 5 CLAW ErgoQIC 10 1/2" BSP 8202 1181 80
Turbo 16 5 NIP 15US ErgoQIC 15US - 8202 1182 22
Turbo 16 10 ErgoNIP 10 ErgoQIC 10 - 8202 1180 46
Turbo 20 20 CLAW ErgoQIC 10 - 8202 1181 75

154 Air line installation
