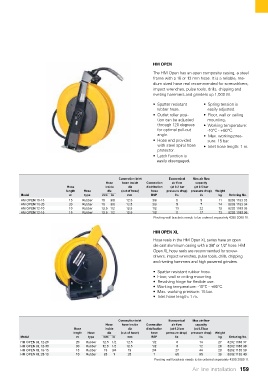

HM OPEN

The HM Open has an open composite casing, a steel
frame with a 10 or 13 mm hose. It is a reliable, me-
dium sized hose real recommended for screwdrivers,
impact wrenches, pulse tools, drills, chipping and
riveting hammers and grinders up 1,000 W.
• Spatter resistant • Spring tension is
rubber hose. easily adjusted.
• Outlet roller posi- • Floor, wall or ceiling
tion can be adjusted mounting.
through 120 degrees • Working temperature:
for optimal pull-out -10°C - +60°C.
angle. • Max. working pres-
• Hose end provided sure: 15 bar.
with steel spiral hose • Inlet hose length: 1 m.
protector.
• Latch function is
easily disengaged.

Connection inlet Economical Max air flow
Hose hose inside Connection air flow capacity
Hose inside dia distribution (at 0.2 bar (at 0.5 bar
length Hose dia (cut of hose) hose pressure drop) pressure drop) Weight
Model m type mm in mm BSP l/s l/s kg Ordering No.
HM OPEN 10-15 15 Rubber 10 3/8 12.5 3/8 5 9 11 8202 1183 33
HM OPEN 10-20 20 Rubber 10 3/8 12.5 3/8 5 7 14 8202 1183 34
HM OPEN 12-10 10 Rubber 12.5 1/2 12.5 1/2 13 22 12 8202 1183 35
HM OPEN 12-15 15 Rubber 12.5 1/2 12.5 1/2 11 17 13 8202 1183 36
Pivoting wall brackets needs to be ordered separately 4390 2080 10.

HM OPEN XL
Hose reels in the HM Open XL series have an open
die cast aluminum casing with a 3/8" or 1/2" hose. HM
Open XL hose reels are recommended for screw-
drivers, impact wrenches, pulse tools, drills, chipping
and riveting hammers and high powered grinders.
• Spatter resistant rubber hose.
• Floor, wall or ceiling mounting.
• Revolving hinge for flexible use.
• Working temperature: -10°C - +60°C.
• Max. working pressure: 15 bar.
• Inlet hose length: 1 m.

Connection inlet Economical Max air flow
Hose hose inside Connection air flow capacity
Hose inside dia distribution (at 0.2 bar (at 0.5 bar
length Hose dia (cut of hose) hose pressure drop) pressure drop) Weight
Model m type mm in mm BSP l/s l/s kg Ordering No.
HM OPEN XL 12-20 20 Rubber 12.5 1/2 12.5 1/2 8 14 27 8202 1183 37
HM OPEN XL 12-30 30 Rubber 12.5 1/2 12.5 1/2 8 12 28 8202 1183 38
HM OPEN XL 19-15 15 Rubber 19 3/4 19 3/4 27 44 28 8202 1183 39
HM OPEN XL 25-10 10 Rubber 25 1 25 1 60 95 30 8202 1183 40
Pivoting wall brackets needs to be ordered separately 4390 2080 11.
Air line installation 159
