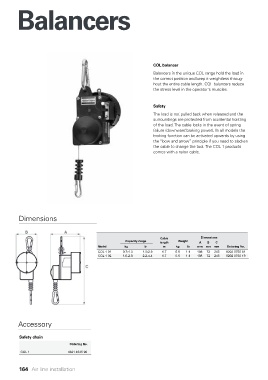

Page 164 - ingenioren

Balancers

COL balancer

Balancers in the unique COL range hold the load in
the correct position and keep it weightless throug-
hout the entire cable length. COL balancers reduce
the stress level in the operator´s muscles.

Safety
The load is not pulled back when released and the
surroundings are protected from accidental hoisting
of the load. The cable locks in the event of spring
failure (downward braking power). In all models the
braking function can be activated upwards by using
the “bow and arrow” principle if you need to slacken
the cable to change the tool. The COL 1 products
comes with a nylon cable.

Dimensions

Cable Di men sions
Capacity range length Weight A B C
Model kg lb m kg lb mm mm mm Ordering No.
COL 1 01 0.7-1.3 1.5-2.9 1.7 0.5 1.1 108 72 245 8202 0750 01
COL 1 02 1.0-2.0 2.2-4.4 1.7 0.5 1.1 108 72 245 8202 0750 19

Accessory

Safety chain
Ordering No.
COL 1 4391 4045 90

164 Air line installation
