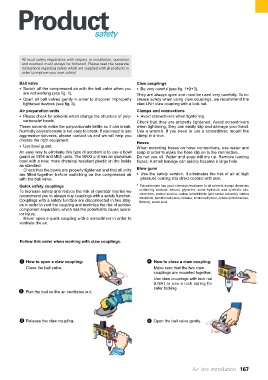

Product

safety

All local safety regulations with respect to installation, operation
and overhaul must always be followed. Please read the separate
instructions regarding safety which are supplied with all products in
order to improve your own safety!
Ball valve Claw couplings
l Switch off the compressed air with the ball valve when you l Be very careful (see fig. 1+2+3).
are not working (see fig. 1). They are always open and must be used very carefully. To in-
l Open all ball valves gently in order to discover improperly crease safety when using claw couplings, we recommend the
tightened devices (see fig. 5). claw LNH claw coupling with a lock nut.
Air preparation units Clamps and connections
l Please check for solvents which change the structure of poly- l Avoid screwdrivers when tightening.
carbonate bowls. Check that they are properly tightened. Avoid screwdrivers
a
These solvents make the polycarbonate brittle so it can break. when tightening, they can easily slip and damage your hand.
Normally polycarbonate is not easy to break. If you need to use Use a wrench. If you need to use a screwdriver, mount the
aggressive solvents, please contact us and we will help you clamp in a vice.
choose the right equipment. Hoses
l Use bowl guard. When mounting hoses on hose connections, use water and
An easy way to eliminate this type of accident is to use a bowl soap in order to make the hose slip on to the connection.
guard on MINI and MIDI units. The MAXI unit has an aluminum Do not use oil. Water and soap will dry up. Remove leaking
bowl with a new, more chemical resistant plastic on the inside hoses. A small leakage can quickly become a large hole.
as standard.
Check that the bowls are properly tightened and that all units Blow guns
are fitted together before switching on the compressed air l Use the safety version. It eliminates the risk of air at high
with the ball valve. pressure coming into direct contact with skin.
Quick safety couplings a Polycarbonate has good chemical resistance to all solvents except chemicals
To increase safety and reduce the risk of operator injuries we containing acetone, benzol, glycerine, some hydraulic and synthetic oils,
recommend you to always buy couplings with a safety function. chloroform, methyl alcohol, carbon tetrachloride (and similar solvents), carbon
Couplings with a safety function are disconnected in two stag- disulphide, perchloroethylene, toluene, trichloroethylene, xylene (nitrocellulose,
thinner), acetic acid.
es in order to vent the coupling and minimize the risk of sudden
component separation, which has the potential to cause opera-
tor injury.
Never open a quick coupling with a screwdriver in order to
ventilate the air.

Follow this order when working with claw couplings.

How to open a claw coupling: How to close a claw coupling:
Close the ball valve. Make sure that the two claw
couplings are mounted together.
Use claw couplings with lock nut
(LNH) or use a lock spring for
safer locking.
Run the tool so the air ventilates out.

Release the claw coupling. Open the ball valve gently.

Air line installation 167
