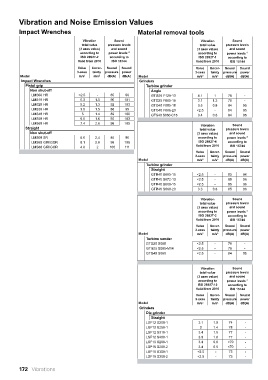

Vibration and Noise Emission Values
Vibration and Noise Emission Values
Impact Wrenches Material removal tools

Vibration Sound Vibration Sound
total value pressure levels total value pressure levels
(3 axes value) and sound (3 axes value) and sound
according to power levels a according to power levels a
ISO 28927-2 according to ISO 28927-1 according to
Valid from 2010 ISO 15744 Valid from 2010 ISO 15744
Value Uncer- Sound Sound Value Uncer- Sound Sound
3-axes tainty pressure power 3-axes tainty pressure power
Model m/s 2 m/s 2 dB(A) dB(A) Model m/s 2 m/s 2 dB(A) dB(A)
Impact Wrenches Grinders
Pistol grip Turbine grinder
Non shut-off Angle
LMS08 HR <2.5 - 85 96 GTG25 F120-13 4.1 1 78 -
LMS18 HR 5.3 1.5 90 101 GTG25 F085-18 3.1 1.3 78 -
LMS28 HR 5.2 1.3 92 103 GTG40 F085-18 3.5 0.8 84 95
LMS38 HR 3.5 1.5 88 99 GTG40 F066-23 <2.5 - 84 95
LMS48 HR 5 1.4 89 100 GTG40 S060-C15 3.4 0.8 84 95
LMS58 HR 5.5 1.6 92 103
LMS68 HR 7.4 2.6 98 109 Vibration Sound
Straight total value pressure levels
Non shut-off (3 axes value) and sound
LMS08 SR 5.6 2,4 85 96 according to power levels a
LMS68 GIR/GOR 8.1 2.8 98 109 ISO 28927-4 according to
LMS88 GIR/GOR 4.8 2 100 111 Valid from 2010 ISO 15744
Value Uncer- Sound Sound
3-axes tainty pressure power
Model m/s 2 m/s 2 dB(A) dB(A)
Turbine grinder
Straight
GTR40 S085-15 <2.5 - 85 96
GTR40 S072-13 <2.5 - 85 96
GTR40 S060-15 <2.5 - 85 96
GTR40 S060-20 3.3 0.8 85 96

Vibration Sound
total value pressure levels
(3 axes value) and sound
according to power levels a
ISO 28927-3 according to
Valid from 2010 ISO 15744
Value Uncer- Sound Sound
3-axes tainty pressure power
Model m/s 2 m/s 2 dB(A) dB(A)
Turbine sander
GTG25 S085 <2.5 - 78 -
GTG25 S085-M14 <2.5 - 78 -
GTG40 S060 <2.5 - 84 95

Vibration Sound
total value pressure levels
(3 axes value) and sound
according to power levels a
ISO 28927-12 according to
Valid from 2010 ISO 15744
Value Uncer- Sound Sound
3-axes tainty pressure power
Model m/s 2 m/s 2 dB(A) dB(A)
Grinders
Die grinder
Straight
LSF12 S200-1 3.1 1.9 74 -
LSF12 S250-1 3 1.4 78 -
LSF12 S310-1 3.4 1.5 77 -
LSF12 S400-1 3.9 1.8 77 -
LSF19 S200-1 3.4 0.9 <70 -
LSF19 S200-2 3.4 0.9 <70 -
LSF19 S300-1 <2.5 - 73 -
LSF19 S300-2 <2.5 - 73 -

172 Vibrations
