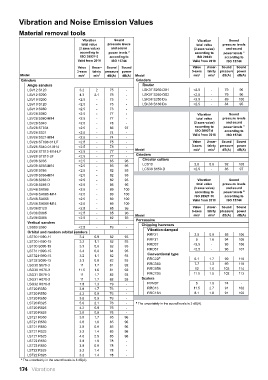

Vibration and Noise Emission Values

Material removal tools
Vibration Sound Vibration Sound
total value pressure levels total value pressure levels
(3 axes value) and sound (3 axes value) and sound
according to power levels a according to power levels a
ISO 28927-3 according to ISO 20643 according to
Valid from 2010 ISO 15744 Valid from 2010 ISO 15744
Value Uncer- Sound Sound Value Uncer- Sound Sound
3-axes tainty pressure power 3-axes tainty pressure power
Model m/s 2 m/s 2 dB(A) dB(A) Model m/s 2 m/s 2 dB(A) dB(A)
Grinders Grinders
Angle sanders Router
LSV12 S120 3.2 2 75 - LSK37 S250-DS1 <2.5 - 79 90
LSV12 S200 4.3 2.1 78 - LSK37 S250-DS2 <2.5 - 79 90
LSV19 S200 <2.5 - 75 - LSK38 S250 Do <2.5 - 89 100
LSV19 S120 <2.5 - 75 - LSK38 S180 Do <2.5 - 84 95
LSV19 S080 <2.5 - 73 -
LSV28 S060 <2.5 - 77 - Vibration Sound
LSV28 S060-M14 <2.5 - 77 - total value pressure levels
LSV28 S040 <2.5 - 78 - (3 axes value) and sound a
LSV28 ST034 <2.5 - 86 97 according to power levels
ISO 28927-8
LSV28 S021 <2.5 - 74 - Valid from 2010 according to
ISO 15744
LSV28 S021-M14 <2.5 - 74 -
LSV28 ST008-01 LF <2.5 - 75 - Value Uncer- Sound Sound
LSV28 S040-01-M14 <2.5 - 78 - 3-axes tainty pressure power
LSV28 ST013-M14-LF <2.5 - 77 - Model m/s 2 m/s 2 dB(A) dB(A)
LSV28 ST013-LF <2.5 - 77 - Grinders
LSV38 S085 <2.5 - 85 96 Circular cutters
LSV38 S085-M14 <2.5 - 85 96 LCS10 2.6 0.9 92 103
LSV38 S066 <2.5 - 82 93 LCS38 S150-D <2.5 - 86 97
LSV38 S066-M14 <2.5 - 82 93
LSV38 S066 D <2.5 - 82 93 Vibration Sound
LSV38 S085 D <2.5 - 85 96 total value pressure levels
LSV48 SA085 <2.5 - 89 100 (3 axes value) and sound a
according to
LSV48 SA085-M14 <2.5 - 89 100 ISO 28927-10 power levels
according to
LSV48 SA066 <2.5 - 89 100 Valid from 2010 ISO 15744
LSV48 SA066-M14 <2.5 - 89 100
LSV38 D120 <2.5 - 85 96 Value Uncer- Sound Sound
LSV38 D085 <2.5 - 85 96 Model 3-axes tainty pressure power
m/s
m/s
dB(A)
dB(A)
2
2
LSV38 D066 <2.5 - 82 93 Percussive
Vertical sanders Chipping hammers
LSS53 S060 <2.5 - 76 - Vibration-damped
Orbital and random orbital sanders
LST30 H090-11 3.4 0.9 82 93 RRF21 3.5 0.8 95 106
94
105
RRF31
5
1.6
LST30 H090-15 3.2 1.1 82 93
LST30 S090-15 3.3 0.8 82 93 RRD37 <2.5 - 95 106
LST31 H090-15 3.4 0.8 84 95 RRD57 <2.5 - 96 107
LST32 H090-15 3.2 1.1 82 93 Conventional type
LST32 S090-15 3.3 0.8 82 93 RRC22F 6.1 1.7 99 110
LSO30 S070-3 11 1.7 81 92 RRC34B 7.7 1.3 99 110
LSO30 H070-3 11.5 1.6 81 92 RRC65B 12 1.6 103 114
LSO31 S070-3 11 1.7 82 93 RRC75B 11.5 1.5 102 113
LSO31 H070-3 11 1.7 82 93 Scalers
LSO32 H070-3 7.8 1.3 79 - RVM07 5 1.9 74 -
LST20 R350 3.8 1.7 76 - RRC13 11.5 2.7 91 102
LST20 R550 4.2 0.9 76 - RRC13N 8.1 1.8 91 102
LST20 R650 3.8 0.9 76 -
LST20 R325 5.6 2.1 76 - a The uncertainty in the sound levels is 3 dB(A).
LST20 R525 4.2 0.9 76 -
LST20 R625 3.8 0.9 76 -
LST21 R350 3.8 1.7 85 96
LST21 R550 3.8 1.9 85 96
LST21 R650 3.8 0.9 85 96
LST21 R525 3.2 1.4 85 96
LST21 R625 4.6 2.9 85 96
LST22 R550 3.8 1.9 78 -
LST22 R650 3.8 0.9 78 -
LST22 R525 3.2 1.4 78 -
LST22 R625 3.2 1.4 78 -
a The uncertainty in the sound levels is 3 dB(A).

174 Vibrations
