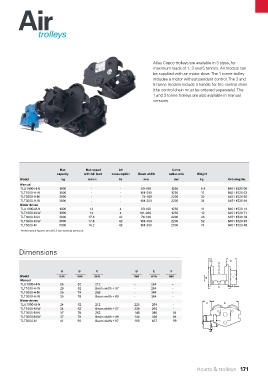

Air

trolleys

Atlas Copco trolleys are available in 3 sizes, for
maximum loads of 1, 3 and 5 tonnes. All models can
be supplied with air motor drive. The 1 tonne trolley
includes a motor without pendant control. The 3 and
5 tonne models include a handle for the control chain
(the control chain must be ordered separately). The
1 and 3 tonne trolleys are also available in manual
versions.

Max Max speed Air Curve
capacity with full load consumption Beam width radius min Weight
Model kg m/min l/s mm mm kg Ordering No.
Manual
TLU1000-H-N 1000 - - 50-160 1250 9.4 8451 1520 06
TLT1000-H-W 1000 - - 161-280 1250 11 8451 1520 63
TLT3000-H-N 3000 - - 74-180 2200 32 8451 1520 55
TLT3000-H-W 3000 - - 181-300 2200 34 8451 1520 89
Motor driven
TLU1000-M-N 1000 14 4 50-160 1250 11 8451 1520 14
TLT1000-M-W 1000 14 4 161-280 1250 12 8451 1520 71
TLT3000-M-N 3000 17.8 42 74-180 2200 48 8451 1520 30
TLT3000-M-W 3000 17.8 42 181-300 2200 52 8451 1520 97
TLT5000-M 5000 16.2 42 181-300 2500 74 8451 1520 48
Performance figures are at 6.3 bar working pressure.

Dimensions

A D
A B C D E F
Model mm mm mm mm mm mm
Manual B
TLU1000-H-N 26 52 212 - 264 -
TLT1000-H-W 26 52 Beam width + 57 - 264 - C
TLT3000-H-N 35 78 262 - 384 - F E
TLT3000-H-W 35 78 Beam width + 89 - 384 -
Motor driven
TLU1000-M-N 24 52 212 225 264 - F E
TLT1000-M-W 24 52 Beam width + 57 225 264 -
TLT3000-M-N 37 78 262 148 380 94
TLT3000-M-W 37 78 Beam width + 89 148 380 94
TLT5000-M 41 93 Beam width + 97 166 437 59

Hoists & trolleys 171
