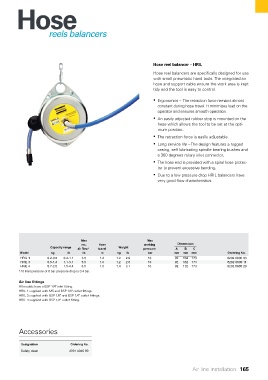

Page 165 - ingenioren

Hose

reels balancers

Hose reel balancer – HRIL

Hose reel balancers are specifically designed for use
with small pneumatic hand tools. The integrated air
hose and support cable ensure the work area is kept
tidy and the tool is easy to control.

• Ergonomics – The retraction force remains almost
constant during hose travel. It minimizes load on the
operator and ensures smooth operation.
• An easily adjusted rubber stop is mounted on the
hose which allows the tool to be set at the opti-
mum position.
• The retraction force is easily adjustable.
• Long service life – The design features a rugged
casing, self lubricating spindle bearing bushes and
a 360 degrees rotary inlet connector.
• The hose end is provided with a spiral hose protec-
tor to prevent excessive bending.
• Due to a low pressure drop HRIL balancers have
very good flow characteristics.

Max Max
rec. Hose working Dimensions
Capacity range air flow a travel Weight pressure A B C
Model kg lb l/s m kg lb bar mm mm mm Ordering No.
HRIL 1 0.2-0.5 0.4-1.1 3.5 1.2 1.2 2.6 10 92 132 173 8202 0600 03
HRIL 3 0.5-1.4 1.1-3.1 5.5 1.0 1.2 2.6 10 92 132 173 8202 0600 11
HRIL 4 0.7-2.0 1.5-4.4 6.5 1.0 1.4 3.1 10 92 132 173 8202 0600 29
a At inlet pressure of 6 bar pressure drop is 0.4 bar.
Air line fittings
All models have a BSP 1/4" inlet fitting.
HRIL 1 supplied with M5 and BSP 1/8" outlet fittings.
HRIL 3 supplied with BSP 1/8" and BSP 1/4" outlet fittings.
HRIL 4 supplied with BSP 1/4" outlet fitting.

Accessories

Designation Ordering No.
Safety chain 4391 4045 90

Air line installation 165
