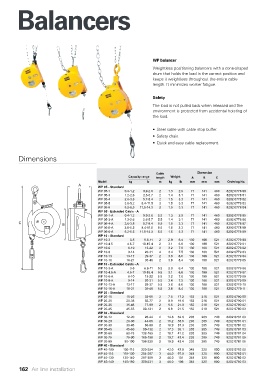

Page 162 - ingenioren

Balancers

WP balancer
Weightless positioning balancers with a cone-shaped
drum that holds the load in the correct position and
keeps it weightless throughout the entire cable
length. It minimizes worker fatigue.

Safety
The load is not pulled back when released and the
environment is protected from accidental hoisting of
the load.

• Steel cable with cable stop buffer.
• Safety chain.
• Quick and easy cable replacement.

Dimensions

Cable Di men sion
Capacity range length Weight A B C
Model kg lb m kg lb mm mm mm Ordering No.
A
WP 05 - Standard
WP 05-1 0.4-1.2 0.9-2.6 2 1.3 2.9 71 141 460 8202 0778 00
WP 05-3 1.2-2.6 2.6-5.7 2 1.4 3.1 71 141 460 8202 0778 01
WP 05-4 2.6-3.8 5.7-8.4 2 1.5 3.3 71 141 460 8202 0778 02
WP 05-5 3.8-5.2 8.4-11.5 2 1.5 3.3 71 141 460 8202 0778 03
WP 05-6 5.2-6.5 11.5-14.3 2 1.5 3.3 71 141 460 8202 0778 04
WP 05 - Extended Cable - A
WP 05-1-A 0.4-1.2 0.9-2.6 5.5 1.3 2.9 71 141 460 8202 0778 05
WP 05-3-A 1.2-2.6 2.6-5.7 5.5 1.4 3.1 71 141 460 8202 0778 06
C WP 05-4-A 2.6-3.8 5.7-8.4 5.5 1.5 3.3 71 141 460 8202 0778 07
B
WP 05-5-A 3.8-5.2 8.4-11.5 5.5 1.5 3.3 71 141 460 8202 0778 08
WP 05-6-A 5.2-6.5 11.5-14.3 5.5 1.5 3.3 71 141 460 8202 0778 09
WP 10 - Standard
WP 10-3 3-5 6.6-11 2 2.9 6.4 130 188 521 8202 0779 00
WP 10-4.5 4.5-7 10-15.4 2 3.1 6.8 130 188 521 8202 0779 01
WP 10-6 6-10 13-22 2 3.2 7.0 130 188 521 8202 0779 02
WP 10-9 9-14 20-31 2 3.4 7.5 130 188 521 8202 0779 03
WP 10-13 13-17 29-37 2 3.6 8.0 130 188 521 8202 0779 04
WP 10-16 16-21 35-46 2 3.8 8.4 130 188 521 8202 0779 05
WP 10 - Extended Cable - A
WP 10-3-A 3-5 6.6-11 5.5 2.9 6.4 130 188 521 8202 0779 06
WP 10-4.5-A 4.5-7 10-15.4 5.5 3.1 6.8 130 188 521 8202 0779 07
WP 10-6-A 6-10 13-22 5.5 3.2 7.0 130 188 521 8202 0779 08
WP 10-9-A 9-14 20-31 5.5 3.4 7.5 130 188 521 8202 0779 09
WP 10-13-A 13-17 29-37 5.5 3.6 8.0 130 188 521 8202 0779 10
WP 10-16-A 16-21 35-46 5.5 3.8 8.4 130 188 521 8202 0779 11
WP 20 - Standard
WP 20-15 15-25 33-55 2 7.8 17.2 152 218 521 8202 0780 00
WP 20-25 25-35 55-77 2 8.9 19.6 152 218 521 8202 0780 01
WP 20-35 35-45 77-99 2 9.5 21.0 152 218 521 8202 0780 02
WP 20-45 45-55 99-121 2 9.8 21.5 152 218 521 8202 0780 03
WP 30 - Standard
WP 30-12 12-20 26-44 2 14.8 32.6 203 285 749 8202 0781 00
WP 30-20 20-30 44-66 2 15.2 33.5 203 285 749 8202 0781 01
WP 30-30 30-45 66-99 2 16.9 37.3 203 285 749 8202 0781 02
WP 30-45 45-60 99-132 2 17.3 38.1 203 285 749 8202 0781 03
WP 30-60 60-75 132-165 2 18.7 41.2 203 285 749 8202 0781 04
WP 30-75 75-90 165-198 2 19.7 43.4 203 285 749 8202 0781 05
WP 30-90 90-100 198-220 2 19.9 43.4 203 285 749 8202 0781 06
WP 40 - Standard
WP 40-100 100-115 220-254 3 42.0 43.9 348 320 800 8202 0782 00
WP 40-115 115-130 254-287 3 44.0 97.0 348 320 800 8202 0782 01
WP 40-130 130-140 287-309 3 46.0 101 348 320 800 8202 0782 02
WP 40-140 140-150 309-331 3 48.0 106 348 320 800 8202 0782 03
162 Air line installation
