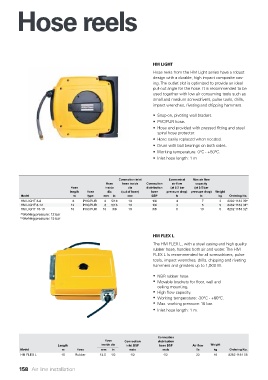

Hose reels

HM LIGHT
Hose reels from the HM Light series have a robust
design with a durable, high impact composite cas-
ing. The outlet slot is optimized to provide an ideal
pull-out angle for the hose. It is recommended to be
used together with low air consuming tools such as
small and medium screwdrivers, pulse tools, drills,
impact wrenches, riveting and chipping hammers.

• Snap-on, pivoting wall bracket.
• PVC/PUR hose.
• Hose end provided with pressed fitting and steel
spiral hose protector.
• Hose easily replaced when needed.
• Drum with ball bearings on both sides.
• Working temperature: 0°C - +50°C.
• Inlet hose length: 1 m

Connection inlet Economical Max air flow
Hose hose inside Connection air flow capacity
Hose inside dia distribution (at 0.2 bar (at 0.5 bar
length Hose dia (cut of hose) hose pressure drop) pressure drop) Weight
Model m type mm in mm BSP ls ls kg Ordering No.
HM LIGHT 8-8 8 PVC/PUR 8 5/16 10 1/4 4 7 3 8202 1183 30 a
HM LIGHT 8-12 12 PVC/PUR 8 5/16 10 1/4 3 5 5 8202 1183 31 b
HM LIGHT 10-10 10 PVC/PUR 10 3/8 10 3/8 6 10 5 8202 1183 32 b
a Working pressure: 12 bar
b Working pressure: 15 bar

HM FLEX L
The HM FLEX L, with a steel casing and high quality
rubber hose, handles both air and water. The HM
FLEX L is recommended for all screwdrivers, pulse
tools, impact wrenches, drills, chipping and riveting
hammers and grinders up to 1,000 W.

• NBR rubber hose.
• Movable brackets for floor, wall and
ceiling mounting.
• High flow capacity.
• Working temperature: -30°C - +60°C.
• Max. working pressure: 15 bar.
• Inlet hose length: 1 m.

Connection
Hose Connection distribution
Length inside dia inlet BSP hose BSP Air flow Weight
Model m Hose mm in male male l/s kg Ordering No.
HM FLEX L 10 Rubber 12.5 1/2 1/2 1/2 22 16 8202 1181 56

158 Air line installation
