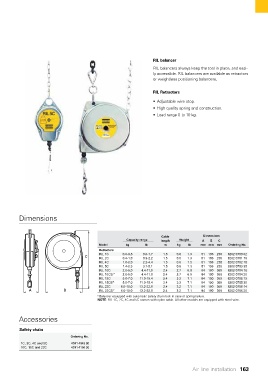

RIL balancer
RIL balancers always keep the tool in place, and easi-
ly accessible. RIL balancers are available as retractors
or weightless positioning balancers.

RIL Retractors
• Adjustable wire stop.
• High quality spring and construction.
• Load range 0 to 10 kg.

Dimensions

Cable Di men sions
Capacity range length Weight A B C
Model kg lb m kg lb mm mm mm Ordering No.
Retractors
RIL 1C 0.0-0.5 0.0-1.7 1.5 0.6 1.3 51 106 238 8202 0700 02
C RIL 2C 0.4-1.0 0.9-2.2 1.5 0.6 1.3 51 106 238 8202 0701 19
RIL 4C 1.0-2.0 2.2-4.4 1.5 0.6 1.3 51 106 238 8202 0702 18
RIL 5C 1.4-2.3 3.1-5.1 1.5 0.6 1.3 51 106 238 8202 0703 25
RIL 10C 2.0-5.0 4.4-11.0 2.4 2.7 6.0 84 190 369 8202 0704 16
a
RIL 10CS 2.0-5.0 4.4-11.0 2.4 2.7 6.0 84 190 369 8202 0704 20
RIL 15C 5.0-7.0 11.0-15.4 2.4 3.2 7.1 84 190 369 8202 0705 15
a
RIL 15CS 5.0-7.0 11.0-15.4 2.4 3.2 7.1 84 190 369 8202 0705 20
RIL 22C 6.0-10.0 13.2-22.0 2.4 3.2 7.1 84 190 369 8202 0706 14
a
A B RIL 22CS 6.0-10.0 13.2-22.0 2.4 3.2 7.1 84 190 369 8202 0706 20
a Balancer equipped with automatic safety drum lock in case of spring failure.
NOTE: RIL 1C, 2C, 4C and 5C comes with nylon cable. All other models are equipped with steel wire.

Accessories

Safety chain
Ordering No.
1C, 2C, 4C and 5C 4391 4045 90
10C, 15C and 22C 4391 4156 00

Air line installation 163
