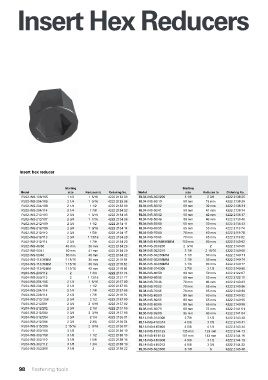

Insert Hex Reducers
ALCO Reaction Arm

On Side Reaction Arm

The link pin connects the powerhead and link but also
ties in the reaction arm to the link.

Stack Socket

Insert hex reducer

Starting Starting
Model size Reduces to Ordering No. Model size Reduces to Ordering No.
RL02-INS-108/105 1 1/2 1 5/16 4222 2133 93 RL04-INS-302/206 3 1/8 2 3/8 4222 2138 25
RL02-INS-204/105 2 1/4 1 5/16 4222 2133 96 RL04-INS-50/19 50 mm 19 mm 4222 2138 28
RL02-INS-204/108 2 1/4 1 1/2 4222 2133 99 RL04-INS-50/32 50 mm 32 mm 4222 2138 31
RL02-INS-204/114 2 1/4 1 7/8 4222 2134 02 RL04-INS-50/41 50 mm 41 mm 4222 2138 34
RL02-INS-212/103 2 3/4 1 3/16 4222 2134 05 RL04-INS-50/42 50 mm 42 mm 4222 2138 37
RL02-INS-212/107 2 3/4 1 7/16 4222 2134 08 RL04-INS-50/46 50 mm 46 mm 4222 2138 40
RL02-INS-212/108 2 3/4 1 1/2 4222 2134 11 RL04-INS-55/50 55 mm 50 mm 4222 2138 43
RL02-INS-212/109 2 3/4 1 9/16 4222 2134 14 RL04-INS-65/55 65 mm 55 mm 4222 2119 74
RL02-INS-212/110 2 3/4 1 5/8 4222 2134 17 RL04-INS-70/60 70 mm 60 mm 4222 2119 78
RL02-INS-212/113 2 3/4 1 13/16 4222 2134 20 RL04-INS-70/65 70 mm 65 mm 4222 2119 82
RL02-INS-212/114 2 3/4 1 7/8 4222 2134 23 RL08-INS-100MM/80MM 100 mm 80 mm 4222 2140 62
RL02-INS-46/36 46 mm 36 mm 4222 2134 26 RL08-INS-203/200 2 3/16 2 4222 2140 65
RL02-INS-50/41 50 mm 41 mm 4222 2134 29 RL08-INS-302/215 3 1/8 2 15/16 4222 2140 68
RL02-INS-50/46 50 mm 46 mm 4222 2134 32 RL08-INS-302/50MM 3 1/8 50 mm 4222 2140 71
RL04-INS-113/30MM 1 13/16 30 mm 4222 2119 58 RL08-INS-302/55MM 3 1/8 55 mm 4222 2140 74
RL04-INS-113/36MM 1 13/16 36 mm 4222 2119 62 RL08-INS-302/60MM 3 1/8 60 mm 4222 2140 77
RL04-INS-113/42MM 1 13/16 42 mm 4222 2119 66 RL08-INS-314/308 3 7/8 3 1/2 4222 2140 80
RL04-INS-200/112 2 1 3/4 4222 2137 74 RL08-INS-60/50 60 mm 50 mm 4222 2122 07
RL04-INS-200/113 2 1 13/16 4222 2137 77 RL08-INS-60/55 60 mm 55 mm 4222 2122 11
RL04-INS-204/105 2 1/4 1 5/16 4222 2137 80 RL08-INS-70/46 70 mm 46 mm 4222 2140 83
RL04-INS-204/108 2 1/4 1 1/2 4222 2137 83 RL08-INS-70/55 70 mm 55 mm 4222 2140 86
RL04-INS-204/114 2 1/4 1 7/8 4222 2137 86 RL08-INS-70/65 70 mm 65 mm 4222 2140 89
RL04-INS-208/114 2 1/2 1 7/8 4222 2119 70 RL08-INS-80/50 80 mm 50 mm 4222 2140 92
RL04-INS-212/ 208 2 3/4 2 1/2 4222 2137 89 RL08-INS-80/55 80 mm 55 mm 4222 2140 95
RL04-INS-212/201 2 3/4 2 1/16 4222 2137 92 RL08-INS-80/65 80 mm 65 mm 4222 2140 98
RL04-INS-212/202 2 3/4 2 1/8 4222 2137 95 RL08-INS-80/75 80 mm 75 mm 4222 2141 01
RL04-INS-212/203 2 3/4 2 3/16 4222 2137 98 RL08-INS-95/80 95 mm 80 mm 4222 2141 04
RL04-INS-212/204 2 3/4 2 1/4 4222 2138 01 RL14-INS-314/308 3 7/8 3 1/2 4222 2143 38
RL04-INS-212/206 2 3/4 2 3/8 4222 2138 04 RL14-INS-410/314 4 5/8 3 7/8 4222 2143 41
RL04-INS-215/209 2 15/16 2 9/16 4222 2138 07 RL14-INS-410/404 4 5/8 4 1/4 4222 2143 44
RL04-INS-302/100 3 1/8 1 4222 2138 10 RL18-INS-135/123 135 mm 123 mm 4222 2144 13
RL04-INS-302/108 3 1/8 1 1/2 4222 2138 13 RL18-INS-151/143 151 mm 143 mm 4222 2144 16
RL04-INS-302/110 3 1/8 1 5/8 4222 2138 16 RL18-INS-410/308 4 5/8 3 1/2 4222 2144 19
RL04-INS-302/112 3 1/8 1 3/4 4222 2138 19 RL18-INS-410/312 4 5/8 3 3/4 4222 2144 22
RL04-INS-302/200 3 1/8 2 4222 2138 22 RL30-INS-602/600 6 1/8 6 4222 2145 48

98 Fastening tools
