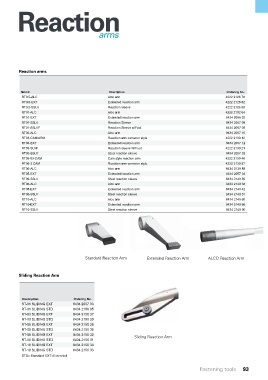

Reaction

arms

Reaction arms

Model Description Ordering No.
RT0.5-ALC Alco arm 4222 2126 76
RT0.5-EXT Extended reaction arm 4222 2126 82
RT0.5-SSLV Reaction sleeve 4222 2126 88
RT01-ALC Alco arm 4222 2102 64
RT01-EXT Extended reaction arm 8434 2056 92
RT01-SSLV Reaction Sleeve 8434 2057 08
RT01-SSLVF Reaction Sleeve w/Foot 8434 2057 09
RT03-ALC Alco arm 8434 2057 10
RT03-CAM ARM Reaction arm cameron style 4222 2130 12
RT03-EXT Extended reaction arm 8434 2057 12
RT03-SLVF Reaction sleeve W/Foot 4222 2130 21
RT03-SSLV Steel reaction sleeve 8434 2057 32
RT05-03-CAM ALCO Reaction arm Cam style reaction arm 4222 2130 48
RT05-3 CAM Reaction arm cameron style 4222 2130 57
RT05-ALC Alco arm 8434 2139 88
RT05-EXT Extended reaction arm 8434 2057 34
RT05-SSLV Steel reaction sleeve 8434 2140 30
RT08-ALC Alco arm 8434 2140 36
RT08-EXT Extended reaction arm 8434 2140 42
RT08-SSLV ALCO Reaction arm 8434 2140 51
Steel reaction sleeve
RT10-ALC Alco arm 8434 2140 60
Standard
RT10-EXT Reaction Arm Extended reaction arm 8434 2140 66
RT10-SSLV Steel reaction sleeve 8434 2140 90

ALCO Reaction arm

Extended
Reaction Arm
Standard
Reaction Arm
Standard Reaction Arm Extended Reaction Arm ALCO Reaction Arm

Sliding Reaction Arm Standard
Reaction Arm
Extended
Reaction Arm

Description Ordering No.
RT-01 SLIDING EXT 8434 2057 33
RT-01 SLIDING STD 8434 2150 95
RT-03 SLIDING EXT 8434 2150 37 Extended
Reaction Arm
RT-03 SLIDING STD 8434 2150 30
RT-05 SLIDING EXT 8434 2150 36
RT-05 SLIDING STD 8434 2150 35
RT-08 SLIDING EXT 8434 2150 32 Sliding Reaction Arm
RT-08 SLIDING STD 8434 2150 31
RT-10 SLIDING EXT 8434 2150 34
RT-10 SLIDING STD 8434 2150 33
STD= Standard EXT=Extended

Fastening tools 93
