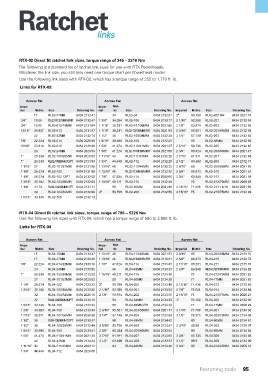

Ratchet

links

RTX-02 Direct fit ratchet link sizes, torque range of 346 – 2318 Nm
The following is a standard list of ratchet link sizes for use with RTX Powerheads.
Whatever the link size, you still only need one torque chart per Powerhead model.
Use the following link sizes with RTX-02, which has a torque range of 255 to 1,710 ft. lb.

Links for RTX-02

Across flat Across flat Across flat
Impe- Impe- Met-
rial Metric Size Ordering No. rial ric Size Ordering No. Imperial Metric Size Ordering No.
17 RL02-17MM 8434 2132 41 34 RL02-34 8434 2132 81 2" 50.799 RL02-200 RR 8434 2021 74
3/4" 19.05 RL02-012/19MM RR 8434 2132 47 1 3/8" 34.924 RL02-106 8434 2132 17 2 1/16" 52.386 RL02-201 8434 2132 53
3/4" 19.05 RL02-012/19MM 8434 2131 84 1 7/16" 36.511 RL02-107/36MM 8434 2021 68 2 1/8" 53.974 RL02-202 8434 2132 56
13/16" 20.637 RL02-013 8434 2131 87 1 7/16" 36.511 RL02-107/36MM RR 8434 2021 83 2 3/16" 55.561 RL02-203/55MM 8434 2132 59
22 RL02-22MM 8434 2132 74 1 1/2" 38 RL02-108/38MM 8434 2132 20 2 1/4" 57.149 RL02-204 8434 2132 62
7/8" 22.224 RL02-014 8434 2020 00 1 9/16" 39.686 RL02-109 8434 2132 23 58 RL02-58MM 8434 2132 89
15/16" 23.812 RL02-015 8434 2131 90 1 5/8" 41.274 RL02-110/41MM 8434 2021 07 2 5/16" 58.736 RL02-205 8434 2132 65
24 RL02-24MM 8434 2020 54 1 5/8" 41.274 RL02-110/41MM RR 8434 2021 08 2 3/8" 60.324 RL02-206/60MM 8434 2021 47
1" 25.339 RL02-100/25MM 8434 2020 03 1 11/16" 43 RL02-111/43MM 8434 2132 26 2 7/16" 61.911 RL02-207 8434 2132 68
1" 25.339 RL02-100/25MM 12PT 8434 2131 93 1 3/4" 44.449 RL02-112 8434 2132 29 2 1/2" 63.498 RL02-208 8434 2132 71
1 1/16" 27 RL02-101/27MM 8434 2131 96 1 13/16" 46 RL02-113/46MM 8434 2132 32 2 9/16" 65 RL02-209/65MM 8434 2021 50
1 1/8" 28.574 RL02-102 8434 2131 99 1 13/16" 46 RL02-113/46MM RR 8434 2132 35 2 5/8" 66.673 RL02-210 8434 2021 51
1 1/8" 28.574 RL02-102 12PT 8434 2132 02 1 7/8" 47.624 RL02-114 8434 2020 06 2 3/4" 69.848 RL02-212 8434 2021 59
1 3/16" 30.162 RL02-103/30MM 8434 2132 05 1 15/16" 49.211 RL02-115 8434 2132 38 70 RL02-212/70MM 8434 2059 29
1 1/4" 31.74 RL02-104/32MM 12PT 8434 2132 11 50 RL02-50MM 8434 2021 86 2 13/16" 71.436 RL02-213 13/16 8434 2021 60
32 RL02-104/32MM 8434 2132 08 2" 50.799 RL02-200 8434 2132 50 2 15/16" 75 RL02-215/75MM 8434 2132 92
1 5/16" 33.336 RL02-105 8434 2132 14

RTX-04 Direct fit ratchet link sizes, torque range of 786 – 5226 Nm
Use the following link sizes with RTX-04, which has a torque range of 580 to 3,855 ft. lb.
Links for RTX-04

Across flat Across flat Across flat
Impe- Impe- Met-
rial Metric Size Ordering No. rial ric Size Ordering No. Imperial Metric Size Ordering No.
15 RL04-15MM 8434 2133 47 1 13/16" 46 RL04-113/46MM 8434 2021 53 2 9/16" 65 RL04-209/65MM 8434 2133 70
17 RL04-17MM 8434 2133 48 1 13/16" 46 RL04-113/46MM RR 8434 2116 01 2 5/8" 66.673 RL04-210 8434 2133 73
7/8" 22.224 RL04-014/22MM 8434 2133 19 1 7/8" 47.624 RL04-114 8434 2133 43 2 11/16" 68.261 RL04-211 8434 2133 76
24 RL04-24MM 8434 2133 93 48 RL04-48MM 8434 2134 27 2 3/4" 69.848 RL04-212/70MM RR 8434 2133 82
1" 25.339 RL04-100/25MM 8434 2133 22 1 15/16" 49.211 RL04-115 8434 2133 46 70 RL04-212/70MM 8434 2021 62
27 RL04-101/27MM 8434 2020 63 50 RL04-50MM 8434 2134 30 71 RL04-71MM 8434 2021 63
1 1/8" 28.574 RL04-102 8434 2133 23 2" 50.799 RL04-200 8434 2133 49 2 13/16" 71.436 RL04-213 8434 2133 85
1 3/16" 30.162 RL04-103/30MM 8434 2133 25 2 1/16" 52.386 RL04-201 8434 2133 52 2 7/8" 73.024 RL04-214 8434 2133 88
32 RL04-104/32MM 8434 2020 15 2 1/8" 53.974 RL04-202 8434 2133 55 2 15/16" 75 RL04-215/75MM 8434 2020 21
32 RL04-104/32MM 12PT 8434 2134 15 54 RL04-54MM 8434 2134 33 3" 76.199 RL04-300 8434 2134 00
1 5/16" 33.336 RL04-105 8434 2133 32 55 RL04-55MM RR 8434 2134 39 77 RL04-77MM 8434 2020 22
1 3/8" 34.924 RL04-106 8434 2133 34 2 3/16" 55.561 RL04-203/55MM 8434 2021 71 3 1/16" 77.788 RL04-301 8434 2134 03
1 7/16" 36.511 RL04-107/36MM 8434 2020 09 2 1/4" 57.149 RL04-204 8434 2133 58 3 1/8" 79.373 RL04-302/79MM 8434 2134 06
1 1/2" 38 RL04-108/38MM 12PT 8434 2133 37 58 RL04-58MM 8434 2134 42 80 RL04-80MM 8434 2134 51
1 1/2" 38 RL04-108/38MM 8434 2133 40 2 5/16" 58.736 RL04-205 8434 2133 61 3 3/16" 80.96 RL04-303 8434 2134 07
1 9/16" 39.686 RL04-109 8434 2133 41 2 3/8" 60.324 RL04-206/60MM 8434 2133 64 85 RL04-85MM 8434 2134 54
1 5/8" 41.274 RL04-110/41MM 8434 2021 35 2 7/16" 61.911 RL04-207 8434 2133 65 3 3/8" 85.725 RL04-306 8434 2134 08
42 RL04-42MM 8434 2134 24 2 1/2" 63.498 RL04-208 8434 2133 67 3 1/2" 88.9 RL04-308 8434 2134 09
1 11/16" 43 RL04-111/43MM 8434 2020 12 64 RL04-64MM 8434 2134 46 3 3/4" 95 RL04-312/95MM 8434 2059 31
1 3/4" 44.449 RL04-112 8434 2020 60
