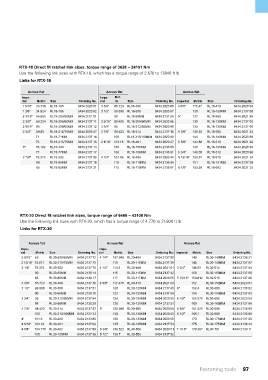

RTX-18 Direct fit ratchet link sizes, torque range of 3628 – 24191 Nm
Use the following link sizes with RTX-18, which has a torque range of 2.676 to 17.845 ft lb
Links for RTX-18

Across flat Across flat Across flat
Impe- Impe- Met-
rial Metric Size Ordering No. rial ric Size Ordering No. Imperial Metric Size Ordering No.
1 5/16" 33.336 RL18-105 8434 2020 91 3 3/8" 85.723 RL18-306 8434 2020 85 4 5/8" 117.47 RL18-410 8434 2020 93
1 3/8" 34.924 RL18-106 8434 2020 92 3 1/2" 88.898 RL18-308 8434 2020 87 120 RL18-120MM 8434 2137 00
2 3/16" 55.561 RL18-203/55MM 8434 2137 10 90 RL18-90MM 8434 2137 24 5" 127 RL18-500 8434 2021 56
2 3/8" 60.324 RL18-206/60MM 8434 2137 11 3 9/16" 90.485 RL18-309/90MM 8434 2020 86 130 RL18-130MM 8434 2137 03
2 9/16" 65 RL18-209/65MM 8434 2137 12 3 3/4" 95 RL18-312/95MM 8434 2020 90 135 RL18-135MM 8434 2137 06
2 3/4" 69.85 RL18-212/70MM 8434 2059 47 3 7/8" 98.423 RL18-314 8434 2137 15 5 3/8" 136.52 RL18-506 8434 2021 23
71 RL18-71MM 8434 2137 14 100 RL18-315/100MM 8434 2020 88 140 RL18-140MM 8434 2020 89
75 RL18-215/75MM 8434 2137 16 4 1/16" 103.18 RL18-401 8434 2020 47 5 5/8" 142.88 RL18-510 8434 2021 22
3" 76.199 RL18-300 8434 2137 13 105 RL18-105MM 8434 2136 88 145 RL18-145MM 8434 2020 94
77 RL18-77MM 8434 2137 17 106 RL18-106MM 8434 2136 91 5 3/4" 146.05 RL18-512 8434 2020 96
3 1/8" 79.373 RL18-302 8434 2137 08 4 1/4" 107.95 RL18-404 8434 2020 48 5 15/16" 150.81 RL18-515 8434 2021 24
80 RL18-80MM 8434 2137 18 110 RL18-110MM 8434 2136 94 151 RL18-151MM 8434 2137 09
85 RL18-85MM 8434 2137 21 115 RL18-115MM 8434 2136 97 6 1/8" 155.58 RL18-602 8434 2021 25

RTX-30 Direct fit ratchet link sizes, torque range of 6466 – 43108 Nm
Use the following link sizes with RTX-30, which has a torque range of 4.770 to 31.800 ft lb
Links for RTX-30

Across flat Across flat Across flat
Impe- Impe-
rial Metric Size Ordering No. rial Metric Size Ordering No. Imperial Metric Size Ordering No.
2 9/16" 65 RL30-209/65MM 8434 2137 72 4 1/4" 107.948 RL30-404 8434 2137 90 140 RL30-140MM 8434 2138 21
2 15/16" 74.611 RL30-215/75MM 8434 2137 73 110 RL30-110MM 8434 2137 39 145 RL30-145MM 8434 2137 57
3 1/8" 79.373 RL30-302 8434 2137 75 4 1/2" 114.3 RL30-408 8434 2021 01 5 3/4" 146.05 RL30-512 8434 2137 93
80 RL30-80MM 8434 2138 14 115 RL30-115MM 8434 2137 42 150 RL30-150MM 8434 2137 60
85 RL30-85MM 8434 2138 17 117 RL30-117MM 8434 2020 56 5 15/16" 150.812 RL30-515 8434 2137 96
3 3/8" 85.723 RL30-306 8434 2137 78 4 5/8" 117.475 RL30-410 8434 2021 00 152 RL30-152MM 8434 2020 61
3 1/2" 88.898 RL30-308 8434 2137 81 120 RL30-120MM 8434 2137 45 6" 152.4 RL30-600 8434 2138 02
90 RL30-90MM 8434 2138 18 123 RL30-123MM 8434 2137 48 155 RL30-155MM 8434 2137 63
3 3/4" 95 RL30-312/95MM 8434 2137 84 124 RL30-124MM 8434 2020 55 6 1/8" 155.575 RL30-602 8434 2020 59
98 RL30-98MM 8434 2138 20 125 RL30-125MM 8434 2137 51 160 RL30-160MM 8434 2137 66
3 7/8" 98.423 RL30-314 8434 2137 87 5" 126.998 RL30-500 8434 2020 99 6 3/8" 161.925 RL30-606 8434 2138 05
100 RL30-315/100MM 8434 2137 33 130 RL30-130MM 8434 2020 53 6 1/2" 165.1 RL30-608 8434 2138 08
4" 101.6 RL30-400 8434 2133 86 133 RL30-133MM 8434 2020 58 170 RL30-170MM 8434 2137 69
4 1/16" 103.18 RL30-401 8434 2137 88 135 RL30-135MM 8434 2137 54 175 RL30-175MM 8434 2138 22
4 1/8" 104.775 RL30-402 8434 2137 89 5 3/8" 136.522 RL30-506 8434 2020 51 7 1/16" 179.387 RL30-701 8434 2138 11
105 RL30-105MM 8434 2137 36 5 1/2" 139.7 RL30-508 8434 2137 92

Fastening tools 97
