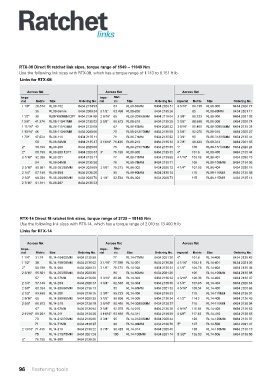

Ratchet

links

RTX-08 Direct fit ratchet link sizes, torque range of 1549 – 11049 Nm
Use the following link sizes with RTX-08, which has a torque range of 1.143 to 8.151 ft lb
Links for RTX-08

Across flat Across flat Across flat
Impe- Impe- Met-
rial Metric Size Ordering No. rial ric Size Ordering No. Imperial Metric Size Ordering No.
1 1/8" 28.574 RL08-102 8434 2134 93 63 RL08-63MM 8434 2020 31 3 5/16" 84.138 RL08-305 8434 2020 77
36 RL08-36mm 8434 2059 34 2 1/2" 63.498 RL08-208 8434 2135 26 85 RL08-85MM 8434 2021 11
1 1/2" 38 RL08-108/38MM 12PT 8434 2134 99 2 9/16" 65 RL08-209/65MM 8434 2116 04 3 3/8" 85.723 RL08-306 8434 2021 02
1 5/8" 41.274 RL08-110/41MM 8434 2135 02 2 5/8" 66.673 RL08-210 8434 2135 29 3 1/2" 88.898 RL08-308 8434 2020 74
1 11/16" 43 RL08-111/43MM 8434 2135 08 67 RL08-67MM 8434 2020 32 3 9/16" 90.485 RL08-309/90MM 8434 2135 38
1 13/16" 46 RL08-113/46MM 8434 2020 66 70 RL08-212/70MM 8434 2135 59 3 5/8" 92.075 RL08-310 8434 2020 27
1 7/8" 47.624 RL08-114 8434 2135 11 71 RL08-71MM 8434 2135 62 3 3/4" 95 RL08-312/95MM 8434 2135 41
50 RL08-50MM 8434 2135 47 2 13/16" 71.436 RL08-213 8434 2135 32 3 7/8" 98.423 RL08-314 8434 2021 65
2" 50.799 RL08-200 8434 2020 68 75 RL08-215/75MM 8434 2135 65 1" 100 RL08-15/100MM 8434 2020 24
2" 50.799 RL08-200 12PT 8434 2020 67 3" 76.199 RL08-300 8434 2135 35 4" 101.6 RL08-400 8434 2135 44
2 1/16" 52.386 RL08-201 8434 2135 17 77 RL08-77MM 8434 2135 68 4 1/16" 103.18 RL08-401 8434 2020 75
54 RL08-54MM 8434 2135 50 78 RL08-78MM 8434 2135 71 105 RL08-105MM 8434 2134 96
2 3/16" 55.561 RL08-203/55MM 8434 2020 69 3 1/8" 79.373 RL08-302 8434 2020 72 4 1/4" 107.95 RL08-404 8434 2020 78
2 1/4" 57.149 RL08-204 8434 2135 20 80 RL08-80MM 8434 2135 74 110 RL08-110MM 8434 2135 05
2 3/8" 60.324 RL08-206/60MM 8434 2020 70 3 1/4" 82.548 RL08-304 8434 2020 73 115 RL08-115MM 8434 2135 14
2 7/16" 61.911 RL08-207 8434 2135 23

RTX-14 Direct fit ratchet link sizes, torque range of 2725 – 18165 Nm
Use the following link sizes with RTX-14, which has a torque range of 2.010 to 13.400 ft lb
Links for RTX-14

Across flat Across flat Across flat
Impe- Impe- Met-
rial Metric Size Ordering No. rial ric Size Ordering No. Imperial Metric Size Ordering No.
1 1/4" 31.74 RL14-104/32MM 8434 2135 99 77 RL14-77MM 8434 2021 30 4" 101.6 RL14-400 8434 2136 43
1 1/2" 38 RL14-108/38MM 8434 2136 02 3 1/16" 77.788 RL14-301 8434 2136 28 4 1/16" 103.18 RL14-401 8434 2021 26
2" 50.799 RL14-200 8434 2020 33 3 1/8" 79.373 RL14-302 8434 2136 31 4 1/8" 104.78 RL14-402 8434 2136 46
2 3/16" 55.561 RL14-203/55MM 8434 2020 36 80 RL14-80MM 8434 2021 20 105 RL14-105MM 8434 2135 98
57 RL14-57MM 8434 2136 60 3 3/16" 80.96 RL14-303 8434 2136 32 4 3/16" 106.36 RL14-403 8434 2136 47
2 1/4" 57.149 RL14-204 8434 2020 37 3 1/4" 82.548 RL14-304 8434 2136 30 4 1/4" 107.95 RL14-404 8434 2020 84
2 3/8" 60.324 RL14-206/60MM 8434 2136 13 85 RL14-85MM 8434 2021 32 4 5/16" 109.54 RL14-405 8434 2020 83
2 1/2" 63.498 RL14-208 8434 2136 16 3 3/8" 85.723 RL14-306 8434 2136 33 110 RL14-110MM 8434 2136 01
2 9/16" 65 RL14-209/65MM 8434 2020 39 3 1/2" 88.898 RL14-308 8434 2136 34 4 1/2" 114.3 RL14-408 8434 2136 49
2 5/8" 66.673 RL14-210 8434 2136 19 3 9/16" 90.485 RL14-309/90MM 8434 2136 37 115 RL14-115MM 8434 2136 04
67 RL14-67MM 8434 2136 64 3 5/8" 92.075 RL14-310 8434 2136 38 4 9/16" 115.89 RL14-409 8434 2136 52
2 11/16" 68.261 RL14-211 8434 2136 20 3 11/16" 93.663 RL14-311 8434 2136 39 4 5/8" 117.48 RL14-410 8434 2136 55
70 RL14-212/70MM 8434 2136 66 3 3/4" 95 RL14-312/95MM 8434 2020 42 120 RL14-120MM 8434 2136 07
71 RL14-71MM 8434 2136 67 98 RL14-98MM 8434 2136 70 5" 127 RL14-500 8434 2021 41
2 13/16" 71.436 RL14-213 8434 2136 22 3 7/8" 98.423 RL14-314 8434 2020 45 130 RL14-130MM 8434 2136 10
75 RL14-215/75MM 8434 2021 29 100 RL14-100MM 8434 2021 14 5 3/8" 136.53 RL14-506 8434 2136 58
3" 76.199 RL14-300 8434 2136 25

96 Fastening tools
