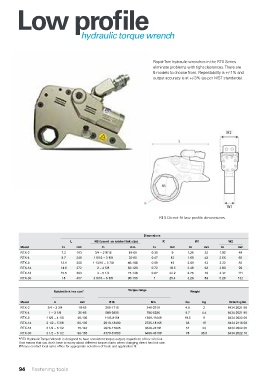

Low profile

hydraulic torque wrench

Rapid-Torc hydraulic wrenches in the RTX Series
eliminate problems with tight clearances. There are
6 models to choose from. Repeatability is +/-1% and
output accuracy is at +/-3% (as per NIST standards).

RTX Direct fit low profile dimensions

Dimensions
L NS (based on ratchet link size) R W1 W2
Model in mm in mm in mm in mm in mm
RTX-2 7.2 183 3/4 – 2 9/16 19-65 0.35 9 1.26 32 1.92 49
RTX-4 9.7 248 1 5/16 – 3 1/8 32-80 0.47 12 1.65 42 2.56 65
RTX-8 12.1 308 1 13/16 – 3 7/8 46-100 0.59 15 2.08 53 3.22 82
RTX-14 14.6 372 2 – 4 5/8 50-120 0.72 18.5 2.48 63 3.89 99
RTX-18 15.5 393 3 – 5 1/2 75-140 0.87 22.2 2.75 70 4.37 111
RTX-30 18 457 3 9/16 – 6 1/8 90-155 1 25.4 3.26 83 5.28 132

Ratchet link hex size* Torque range Weight

Model in mm ft lb Nm lbs kg Ordering No.
RTX-2 3/4 – 2 3/4 19-65 255-1710 346-2318 4.5 2 8434 2021 90
RTX-4 1 – 3 1/8 25-85 580-3855 786-5226 9.7 4.4 8434 2021 95
RTX-8 1 5/8 – 4 1/8 46-105 1143-8151 1549-11049 19.5 9 8434 2022 00

RTX-14 2 1/2 – 5 3/8 60-135 2010-13400 2725-18165 33 15 8434 2116 58
RTX-18 3 1/2 – 5 1/2 75-140 2676-17845 3628-24191 51 23 8434 2022 05
RTX-30 3 1/2 – 6 1/2 90-165 4770-31800 6466-43108 78 35.5 8434 2022 10
*RTX Hydraulic Torque Wrench is designed to have consistent torque output, regardless of hex size link.
That means that you don't have to worry about different torque charts when changing direct hex link size.
#Please contact local sales office for appropriate selection of tools and application fit.

94 Fastening tools
