Hydraulic

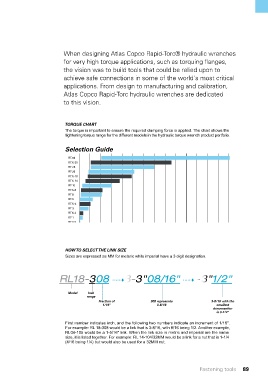

Wrenches When designing Atlas Copco Rapid-Torc® hydraulic wrenches
for very high torque applications, such as torquing flanges,
the vision was to build tools that could be relied upon to
achieve safe connections in some of the world's most critical

applications. From design to manufacturing and calibration,
Atlas Copco Rapid-Torc hydraulic wrenches are dedicated
to this vision.

TORQUE CHART
The torque is important to ensure the required clamping force is applied. The chart shows the
tightening torque range for the different models in the hydraulic torque wrench product portfolio.

Selection Guide

RT-50
RTX-30
RT-25
RT-20
RTX-18
RTX-14
RT-10
RTX-8
RT-8
RT-5
RTX-4
RT-3
RTX-2
RT-1
RT-0.5
0 5000 1000015000 20000 25000 30000 35000 40000 45000 50000 55000 60000 65000 70000 Nm

HOW TO SELECT THE LINK SIZE
Sizes are expressed as MM for meteric while imperial have a 3 digit designation.

Model Inch
range
Fraction of 308 represents 3-8/16 with the
1/16" 3-8/16 smallest
denomanitor
is 3-1/2"

First number indicates inch, and the following two numbers indicate an increment of 1/16".
For example: RL 18-308 would be a link that is 3-8/16, with 8/16 being 1/2. Another example,
RL04-105 would be a 1-5/16" link. When the link size in metric and imperial are the same
size, it is listed together. For example: RL 14-104/32MM would be a link for a nut that is 1-1/4
(4/16 being 1/4) but would also be used for a 32MM nut.

Fastening tools 89
