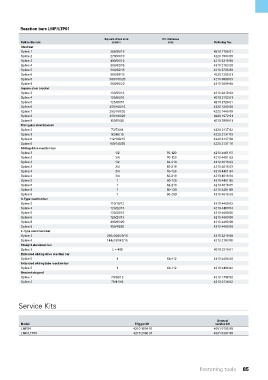

Reaction bars LMP/LTP61

Square drive size CC distance
Spline dia mm mm/in mm Ordering No.
Steel bar
Spline 1 268/36/18 4210 1798 01
Spline 2 270/35/10 4220 1903 00
Spline 3 400/56/12 4210 2219 80
Spline 4 500/62/15 4210 2183 80
Spline 5 500/62/15 4210 2726 80
Spline 6 560/80/15 4220 1200 01
Spline 8 500/150/20 4210 3899 03
Spline 9 500/85/20 4210 3899 80
Square steel bracket
Spline 3 100/50/12 4210 2219 03
Spline 4 125/65/16 4210 2183 01
Spline 5 125/65/16 4210 2726 01
Spline 6 200/100/15 4220 1200 00
Spline 7 250/150/20 4220 1445 00
Spline 8 250/160/20 4220 1972 91
Spline 9 150/85/20 4210 3899 01
Triangular steel bracket
Spline 2 73/72/14 4220 2137 02
Spline 3 82/80/15 4220 2137 03
Spline 6 112/109/15 4220 2137 06
Spline 6 150/145/20 4220 2137 16
Sliding drive reaction bar
Spline 3 1/2 70-120 4210 4481 83
Spline 3 3/4 70-120 4210 4481 63
Spline 3 1/2 82-218 4210 4616 83
Spline 3 3/4 82-218 4210 4616 63
Spline 4 3/4 76-126 4210 4481 84
Spline 4 3/4 82-218 4210 4616 84
Spline 5 1 80-125 4210 4481 85
Spline 5 1 82-218 4210 4616 85
Spline 9 1 80-130 4210 4481 89
Spline 9 1 80-280 4210 4616 89
S-Type reaction bar
Spline 3 110/18/12 4210 4480 03
Spline 4 120/22/15 4210 4480 04
Spline 5 130/25/15 4210 4480 05
Spline 6 125/25/15 4210 4480 06
Spline 8 200/65/20 4210 4480 08
Spline 9 160/40/20 4210 4480 09
L-Type aluminum bar
Spline 3 266x300/29/15 4210 2219 08
Spline 4 144x150/42/15 4210 2183 08
Straight aluminum bar
Spline 3 L = 400 4210 2219 01
Extended sliding drive reaction bar
Spline 5 1 68-112 4210 4498 80
Extended sliding tube reaction bar
Spline 5 1 68-112 4210 4498 82
Bracket stepped
Spline 1 70/36/13 4210 1798 02
Spline 2 70/41/14 4210 2134 02

Service Kits

General
Model Trigger kit service kit
LMP24 4210 1934 91 4081 0105 90
LMP/LTP61 4210 2190 91 4081 0397 90

Fastening tools 85
