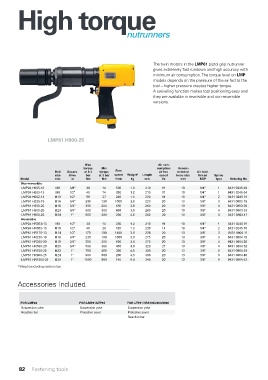

P. 82
High torque
nutrunners
The twin motors in the LMP61 pistol grip nutrunner
gives extremely fast rundown and high accuracy with
minimum air consumption. The torque level on LMP
models depends on the pressure of the air fed to the
tool – higher pressure creates higher torque.
A swiveling function makes tool positioning easy and
they are available in reversible and non-reversible
versions.
LMP61 H900-25
Max Air con-
torque Min sumption Recom-
Bolt Square at 6.3 torque Free at free mended Air inlet
size drive bar at 3 bar speed Weight a Length speed hose size thread Spline
Model mm in Nm Nm r/min kg mm l/s mm BSP type Ordering No.
Non-reversible
LMP24 H005-10 M8 3/8'' 30 14 500 1.0 210 11 10 1/4'' 1 8431 0245 49
LMP24 H003-13 M8 1/2'' 40 14 330 1.2 210 11 10 1/4'' 1 8431 0245 64
LMP24 H002-13 M10 1/2'' 58 27 240 1.3 230 11 10 1/4'' 2 8431 0245 31
LMP61 H230-19 M16 3/4'' 230 130 1000 3.0 223 20 13 3/8'' 3 8431 0803 19
LMP61 H350-20 M18 3/4'' 350 200 650 3.9 260 20 13 3/8'' 4 8431 0803 26
LMP61 H500-20 M20 3/4'' 500 300 450 3.9 260 20 13 3/8'' 4 8431 0803 33
LMP61 H900-25 M24 1'' 900 500 260 4.5 282 20 13 3/8'' 5 8431 0803 47
Reversible
LMP24 HR003-13 M8 1/2'' 30 14 250 1.2 210 11 10 1/4'' 1 8431 0245 91
LMP24 HR002-13 M10 1/2'' 40 20 180 1.3 230 11 10 1/4'' 2 8431 0245 70
LMP61 HR170-13 M14 1/2'' 170 100 1400 3.0 238 20 13 3/8'' 3 8431 0804 11
LMP61 HR230-19 M16 3/4'' 230 130 1000 3.0 275 20 13 3/8'' 3 8431 0804 18
LMP61 HR350-20 M18 3/4'' 350 200 650 3.9 275 20 13 3/8'' 4 8431 0804 25
LMP61 HR500-20 M20 3/4'' 500 300 450 3.9 320 21 13 3/8'' 4 8431 0804 32
LMP61 HR700-25 M22 1'' 700 400 350 4.5 305 20 13 3/8'' 5 8431 0804 39
LMP61 HR900-25 M24 1'' 900 500 260 4.5 305 20 13 3/8'' 5 8431 0804 46
LMP61 HR1500-25 M30 1'' 1600 900 140 6.8 345 20 13 3/8'' 9 8431 0804 53
a Weight excluding reaction bar.
Accessories Included
FOR LMP24 FOR LMP61/LTP61 FOR LTP61 HR1900/2800/3800
Suspension yoke Suspension yoke Suspension yoke
Reaction bar Protective cover Protective cover
Reaction bar
82 Fastening tools
