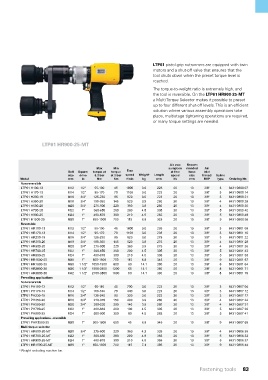

nutrunners

LTP61 pistol grip nutrunners are equipped with twin
motors and a shut-off valve that ensures that the
tool shuts down when the preset torque level is
reached.
The torque-to-weight ratio is extremely high, and
the tool is reversible. On the LTP61 HR900-25-MT
a Multi Torque Selector makes it possible to preset
up to four different shut-off levels. This is an efficient
solution where various assembly operations take
place, multistage tightening operations are required,
or many torque settings are needed.

LTP61 HR900-25-MT

Air con- Recom-
Max Min sumption mended Air
Bolt Square torque at torque Free at free hose inlet
size drive 6.3 bar at 3 bar speed Weight a Length speed size thread Spline
Model mm in Nm Nm r/min kg mm l/s mm BSP type Ordering No.
Non reversible
LTP61 H100-13 M12 1/2'' 55-100 45 1800 3.0 223 20 13 3/8'' 3 8431 0800 07
LTP61 H170-13 M14 1/2'' 95-170 70 1100 3.0 223 20 13 3/8'' 3 8431 0800 14
LTP61 H230-19 M16 3/4'' 125-230 85 820 3.0 223 20 13 3/8'' 3 8431 0800 21
LTP61 H350-20 M18 3/4'' 190-350 145 520 3.9 260 20 13 3/8'' 4 8431 0800 28
LTP61 H500-20 M20 3/4'' 275-500 220 360 3.9 260 20 13 3/8'' 4 8431 0800 35
LTP61 H700-25 M22 1'' 360-650 280 280 4.5 305 20 13 3/8'' 5 8431 0800 42
LTP61 H900-25 M24 1'' 480-870 300 210 4.5 282 20 13 3/8'' 5 8431 0800 49
LTP61 H1500-25 M30 1'' 850-1500 700 115 6.8 323 20 13 3/8'' 9 8431 0800 56
Reversible
LTP61 HR100-13 M12 1/2'' 55-100 45 1800 3.0 235 20 13 3/8'' 3 8431 0801 08
LTP61 HR170-13 M14 1/2'' 95-170 70 1100 3.0 238 20 13 3/8'' 3 8431 0801 15
LTP61 HR230-19 M16 3/4'' 125-230 85 820 3.0 275 20 13 3/8'' 3 8431 0801 22
LTP61 HR350-20 M18 3/4'' 190-350 145 520 3.9 275 20 13 3/8'' 4 8431 0801 29
LTP61 HR500-20 M20 3/4'' 275-500 220 360 3.9 275 20 13 3/8'' 4 8431 0801 36
LTP61 HR700-25 M22 1'' 360-650 280 280 4.5 305 20 13 3/8'' 5 8431 0801 43
LTP61 HR900-25 M24 1'' 480-870 300 210 4.5 305 20 13 3/8'' 5 8431 0801 50
LTP61 HR1500-25 M30 1'' 850-1500 700 115 6.8 345 20 13 3/8'' 9 8431 0801 57
LTP61 HR1900-38 M30 1 1/2'' 1050-1900 800 90 14.1 380 20 13 3/8'' 8 8431 0801 64
LTP61 HR2800-38 M36 1 1/2'' 1550-2800 1200 65 14.1 380 20 13 3/8'' 8 8431 0801 71
LTP61 HR3800-38 M42 1 1/2'' 2100-3800 1600 50 14.1 380 20 13 3/8'' 8 8431 0801 78
Prevailing applications
Non reversible
LTP61 PH100-13 M12 1/2'' 60-110 45 700 3.0 223 20 13 3/8'' 3 8431 0807 04
LTP61 PH170-13 M14 1/2'' 100-180 70 440 3.0 223 20 13 3/8'' 3 8431 0807 12
LTP61 PH230-19 M16 3/4'' 130-240 90 320 3.0 223 20 13 3/8'' 3 8431 0807 17
LTP61 PH350-20 M18 3/4'' 210-370 150 200 3.9 260 20 13 3/8'' 4 8431 0807 24
LTP61 PH500-20 M20 3/4'' 300-520 200 140 3.9 260 20 13 3/8'' 4 8431 0807 31
LTP61 PH700-25 M22 1'' 400-680 280 100 4.5 305 20 13 3/8'' 5 8431 0807 38
LTP61 PH900-25 M24 1'' 500-900 350 80 4.5 282 20 13 3/8'' 5 8431 0807 41
Prevailing applications - reversible
LTP61 PHR1500-25 M30 1'' 900-1600 650 45 6.8 345 20 13 3/8'' 9 8431 0807 68
Multi torque selector
LTP61 HR500-20-MT M20 3/4'' 275-500 220 360 4.2 325 20 13 3/8'' 4 8431 0806 30
LTP61 HR700-25-MT M22 1'' 360-650 280 280 4.8 355 20 13 3/8'' 5 8431 0806 33
LTP61 HR900-25-MT M24 1'' 480-870 300 210 4.8 355 20 13 3/8'' 5 8431 0806 37
LTP61 HR1500-25-MT M30 1'' 850-1500 700 115 7.1 395 20 13 3/8'' 9 8431 0806 44
a Weight excluding reaction bar.
