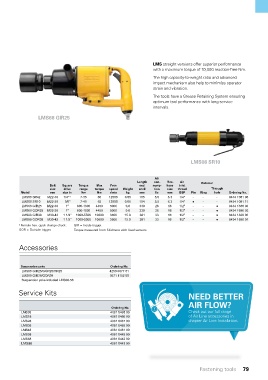

LMS straight versions offer superior performance
with a maximum torque of 10,000 reaction-free Nm.

The high capacity-to-weight ratio and advanced
impact mechanism also help to minimize operator
strain and vibration.
The tools have a Grease Retaining System ensuring
optimum tool performance with long service
intervals.

LMS68 GIR25

LMS08 SR10

Air
Length con- Rec. Air Retainer
Bolt Square Torque Max Free excl sump- hose inlet
size drive range torque speed Weight anvil tion size thread Through
Model mm size in Nm Nm r/min kg mm l/s mm BSP Pin Ring hole Ordering No.
LMS08 SR42 M22-30 1/4'' a 7-35 60 12500 0.85 185 5,5 6.3 1/4'' - - - 8434 1081 06
LMS08 SR10 M22-30 3/8'' 7-45 65 12500 0.85 184 5,5 6.3 1/4'' ● - - 8434 1081 11
LMS68 GIR25 M22-30 1'' 600-1800 4450 5000 9.6 339 28 16 1/2'' - - ● 8434 1680 00
LMS68 GOR25 M22-30 1'' 600-1800 4450 5000 9.6 339 28 16 1/2'' - - ● 8434 1680 02
LMS88 GIR38 M30-42 1 1/2'' 1000-5500 10000 3800 15.0 381 33 16 1/2'' - - ● 8434 1880 00
LMS88 GOR38 M30-42 1 1/2'' 1000-5500 10000 3800 15.0 381 33 16 1/2'' - - ● 8434 1880 01
a Female hex. quick change chuck. GIR = Inside trigger.
GOR = Outside trigger. Torque measured from Skidmore with fixed sensors

Accessories

Suspension yoke Ordering No.
LMS68 GIR25/GOR25/HR25 4250 0677 81
LMS88 GIR38/GOR38 0371 1102 00
Suspension yoke included LMS08-58

Service Kits
NEED BETTER
AIR FLOW?
Ordering No.
LMS08 4081 0465 90 Check out our full range
LMS18 4081 0466 90 of Air Line accessories in
LMS28 4081 0467 90 chapter Air Line Installation.
LMS38 4081 0468 90
LMS48 4081 0461 90
LMS58 4081 0445 90
LMS68 4081 0442 90
LMS88 4081 0443 90

Fastening tools 79
